Mains supply: 220-230 V
Option: 110-120 / 240 V With external autotransformer or isolating transformer
Mains frequency: 45 Hz to 60 Hz
Max. power consumption (at short circuit): 3000 VA
Max. output voltage: 32 kV
Output voltage range: 0 - 8 kV, 0 - 16 kV, 0 - 32 kV
Max. surge energy: 1100 Ws
Impulse frequency: 10, 20 Imp. / min
Max. DC output current
Voltage range:
0 - 8 kV: 850 mA
0 - 16 kV: 425 mA
0 - 32 kV: 210 mA
Precision of the kV-meter: 1.5
Operating temperature range: -20 °C to +50°C
Weight without housing: 79 kg
Dimension of the housing (W x H x D): Approx. 514 x 645 x 730 mm
Delivery includes

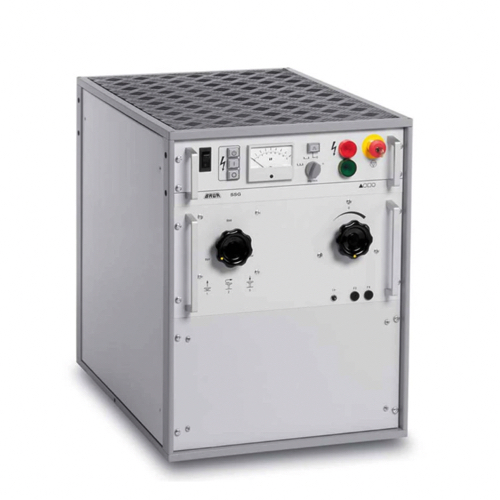

● Surge voltage generator without accessories
● Mains connection cable (2.5 m)
● HV connection cable (4 m)
● Ground line (10 mm², 4 m)
● Jumper plug for Emergency-Off socket
● User manual
● for stand alone use a 19" housing is required (see datasheet)
