Testing:
DC voltage (negative): 0 – 80 kV
Output current (negative):
0.8 mA @ 80 kV
1.5 mA @ 70 KV
Short-circuit current (negative): 20 mA
Voltage measuring range:
Range I: 0 – 80 kV
Range II: 0 – 16 kV
Current measuring range: 20 nA to 1 µA / 10 µA / 100 µA / 1 mA / 10 mA / 100 mA
Accuracy of the voltmeter (kV): ±2.5%
Timer: 0 – 30 min
Max. discharge energy: 8,000 J at 1 discharge/15 min (ambient temperature 20°C)
General:
Power supply: 110/120 V, 220/230 V, 240 V, 50/60 Hz
Power consumption: 1,400 VA
Degree of protection: IP53 (in closed state)
Ambient temperature (operational): 0°C to +45°C
Storage temperature: -20°C to +60°C
Relative humidity: Non-condensing
Dimensions (W x H x D): Approx. 495 x 460 x 285 mm
Weight: Approx. 25 kg
Safety and EMC: CE-compliant in accordance with Low Voltage Directive (2014/35/EU), EMC Directive (2014/30/EU), EN 60068-2-ff Environmental testing
Standard delivery

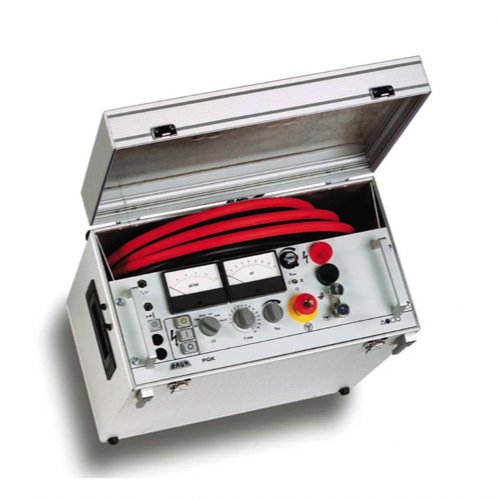

▪ BAUR PGK 80 E DC HV tester
▪ HV connection cable, 5 m, fix mounted
▪ Earth cable, 3 m, with earth terminal
▪ Operational earthing cable, 4 m, for current measurement
▪ Mains supply cord, 2.5 m
▪ User manual
