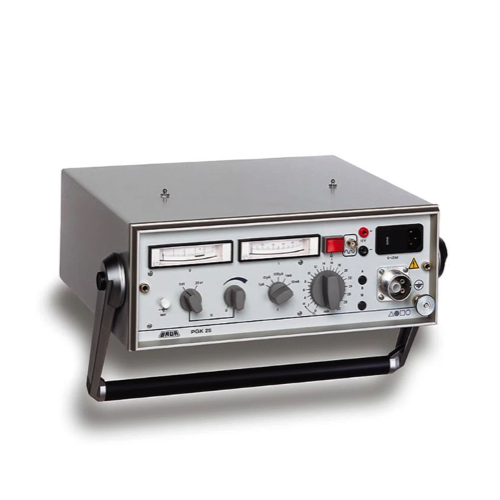

BAUR PGK 25 ອຸປະກອນທົດສອບແຮງດັນສູງ DC (25 kV)
Testing:
DC voltage (negative):
Range I: 0 – 5 kV
Range II: 0 – 25 kV
Output current (negative): 1 mA
Short-circuit current (negative): 3 mA
Voltage measuring range:
Range I: 0 – 5 kV
Range II: 0 – 25 kV
Current measuring range: 50 nA to 1 µA / 10 µA / 100 µA / 1 mA / 10 mA
Max. discharge energy:
For 1 discharge/10 min: 3,000 J, 9.6 µF / 25 kV
For 1 discharge/20 min: 5,000 J, 16 µF / 25 kV
General:
Power supply:
Mains voltage: 110/120 V, 220/230 V, 240 V, 50/60 Hz
Integrated rechargeable battery: Lead-acid battery DC 12 V, 6.5 Ah (maintenance free)
External supply: DC 12 V
Power consumption: 110 VA
Ambient temperature (operational): 0°C to +45°C
Storage temperature: -20°C to +60°C
Relative humidity: Non-condensing
Dimensions (W x H x D): Approx. 415 x 140 x 360 mm
Weight: Approx. 16.5 kg
Safety and EMC: CE-compliant in accordance with Low Voltage Directive (2014/35/EU), EMC Directive (2014/30/EU), EN 60068-2-ff Environmental testing
Integrated rechargeable battery:
Battery type: Lead-acid battery DC 12 V, 6.5 Ah (maintenance free)
Battery life: Approx. 30 min at 2/3 load
Charging time: Approx. 24 h
Standard delivery
▪ BAUR PGK 25 DC HV tester
▪ Leather bag for HV connection cable
▪ HV connection cable, 2.6 m
▪ Earth cable, 3 m, with earth terminal
▪ Mains supply cord, 2.5 m
▪ User manual
