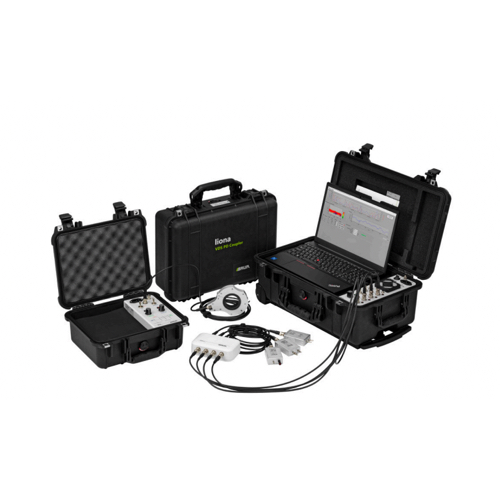

BAUR liona ເຄື່ອງທົດສອບ PD Spot ອອນໄລນ໌ (5 pC – 1,000 nC)
Technical Data - liona Cable PD Measurement System
Measurement Range for Cable PD: 5 pC – 1,000 nC
Number of Signal Inputs: 4
Overvoltage Protection: Up to 500 V
Sampling Rate:
100 MSamples/s
Resolution: 14 bit
Analog Input Voltage Range: ±1.0 V (Resolution 61 µV)
Data Interface: USB 2.0, Ethernet
Power Supply
Mains Voltage: 100 – 240 V, 50/60 Hz
Rechargeable Battery: Lithium-polymer battery, DC 12 V, 8 Ah, 96 Wh
Battery Life: Min. 3 hours
Degree of Protection: IP67 in closed state
Dimensions (W x H x D): Approx. 550 x 350 x 225 mm
Weight: Approx. 13.5 kg
Ambient Temperature (Operational): -10°C to +45°C
Storage Temperature: -20°C to +60°C
Humidity: ≤ 90%, non-condensing
Safety and EMC: CE-compliant in accordance with Low Voltage Directive (2014/35/EU) and EMC Directive (2014/30/EU)
liona Software
Software Modules:
Spot Tester: Used for PD measurement
Mapping: Used for PD mapping
Cable Length: Used to measure the cable length
Operating Modes of the Spot Tester Software Module:
PD TEST: Used for routine and repetitive testing
Scope: Used for in-depth investigation
PD Analysis: PRPD (PD Pattern Analysis), Waveform (Analysis of individual PD pulses)
Noise Separation and PD Classification: DeCIFer® algorithm
Reporting: On screen, PDF
Software Available in: English, German, Chinese, French, Portuguese, Russian, Spanish
Charger
Power Supply: 100 – 240 V, 50/60 Hz
Charging Voltage: 5 V ± 5%
Charging Current: 2,200 mA
General
Degree of Protection (Transport Case): P67 in closed state
Transport Case Dimensions (W x H x D): Approx. 295x146x347 mm
Ambient Temperature (Operational): -10°C to +45°C
Storage Temperature: -20°C to +60°C
Humidity: ≤ 90%, non-condensing
Standard delivery
▪ liona online PD spot tester, incl.:
– Laptop acc. to quotation with installed liona software
– User manual
– Pocket guide (PDF)
▪ Connection set as selected, see datasheet
