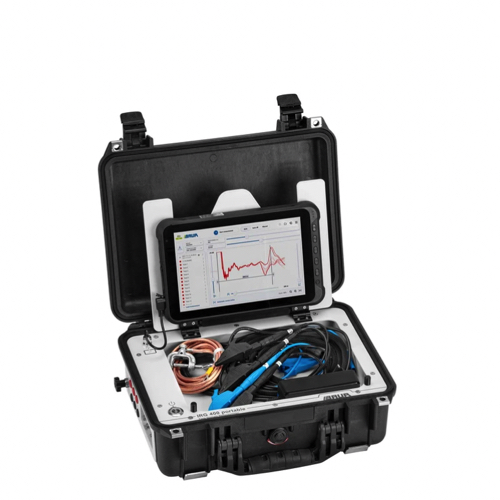

BAUR IRG 400 portable Time Domain Reflectometer (10 m – 250 km)
Technical parameter
Pulse voltage: 60 V
Pulse width: 30 ns – 10 µs
Number of SIM/MIM pulses: 1 – 20 pulses, adjustable
Voltage-proof up to: 400 V, 50/60 Hz
Measurement category: CAT IV/600 V (with enabled separation filter)
Input signal gain Dynamic range: 101 dB (-63 to +38 dB)
Measurement range: 10 m – 250 km
Accuracy: 0.1% (relating to the measurement result)
Data rate: 400 MHz
Resolution: 0.1 m (at v/2 = 80 m/μs)
Velocity of propagation (v/2): 20 – 150 m/μs, adjustable
Control of measurements: BAUR BUI-F application, installed on a tablet
Power supply:
Mains voltage (via charger): 100 – 240 V, 50/60 Hz
Rechargeable battery: Lithium-ion battery, 14.4 V, 2,900 mAh, 39.2 Wh
External power supply: DC 12 – 24 V, 65 W
Battery life: Approx. 6 h
Battery charging time: Approx. 4 h
Dimensions: Approx. 371 x 259 x 152 mm
Weight:
IRG 400 portable (acc. to standard delivery): approx. 7.7 kg
Tablet: approx. 1.1 kg
Degree of protection: IP54
Ambient temperature (operational): -20°C to +55°C
Storage temperature: -20°C to +65°C
Safety and EMC: CE-compliant in accordance with Low Voltage Directive (2014/35/EU), EMC Directive (2014/30/EU), EN 60068-2-ff Environmental testing
BAUR Software 4 for office PC (office installation): Used to evaluate test and measurement logs
SCORPION industrial tablet:
Display size: 10.1”
Operating system: Windows 10
Degree of protection:
IP65
MIL-STD-810G
Rechargeable battery: Lithium-ion battery, 7.6 V, 5,000 mAh, 38 Wh
Charging the battery: via the IRG 400 portable (USB-C)
Standard delivery
IRG 400 portable time domain reflectometer:
▪ IRG 400 portable time domain reflectometer
▪ SCORPION industrial tablet, incl.:
– Windows operating system
– BAUR BUI-F application
▪ 3-phase TDR connection cable, 2 m, with connection clips and fuses
▪ BNC cable, 2 m, incl.:
– BNC adapter, 2 x connection Ø 4 mm
– Connection cables, red and black, 0.75 m each, with fuses
▪ Earth cable, 3 m, with earth terminal
▪ Charger incl. country-specific mains supply cord
▪ User manual
Information on individual functions and the required accessories can be obtained from your BAUR representative
