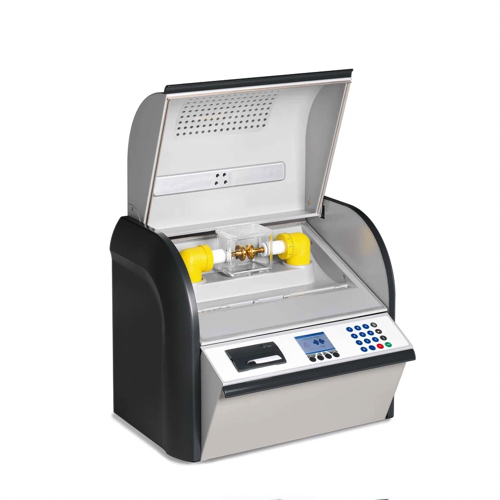

BAUR DTA 100 C ເຄື່ອງທົດສອບແຮງດັນການທໍາລາຍນ້ໍາມັນ (0.5 - 10 kV/s)
General
Input Voltage: 90 – 264 V (50/60 Hz)
Power Consumption: Max. 70 VA
Display: Colour LCD (approx. 3.5”), screen resolution 320 x 240 pixels
Data Interface: USB 2.0 (type B plug), BAUR Report Manager external, USB interface (type A plug)
Printer: Matrix printer, 24 characters, 57 mm plain paper
Ambient Temperature (Operational): -10°C to +55°C
Storage Temperature: -20°C to +60°C
Humidity: Non-condensing
Dimensions (W x H x D): 545 x 458 x 380 mm (closed), 545 x 770 x 461 mm (open)
Weight: Approx. 39 kg
Degree of Protection: IP32
Safety and EMC: CE compliant in accordance with Low Voltage Directive (2014/35/EU), EMC Directive (2014/30/EU), Environmental testing EN 60068-2-ff
Software Available In: English, Chinese (CN), Chinese (TW), Czech, Dutch, French, German, Italian, Korean, Polish, Portuguese, Russian, Spanish, Turkish
Insulating oil testing
Output voltage: 0 - 100 kVrms symmetrical
Voltage slew rate: 0.5 - 10 kV/s
Switch-off time: < 10 μs
Voltage slew monitoring: Real Breakdown Monitoring (RBM)
Accuracy: 0 - 100 kV ± 1 kV
Resolution: 0.1 kV
Internal temperature recording of the oil sample: 0 - 99°C
Temperature resolution: 1°C
User-specific test sequences: 10
Standard delivery
▪ BAUR DTA 100 C oil breakdown voltage tester incl. integrated plain paper printer
▪ 1 x glass test vessel (test standard as selected)
▪ Magnetic stirrer
▪ Lifting stick for magnetic stirrer
▪ Setting gauge
▪ Mains supply cord
▪ User manual
