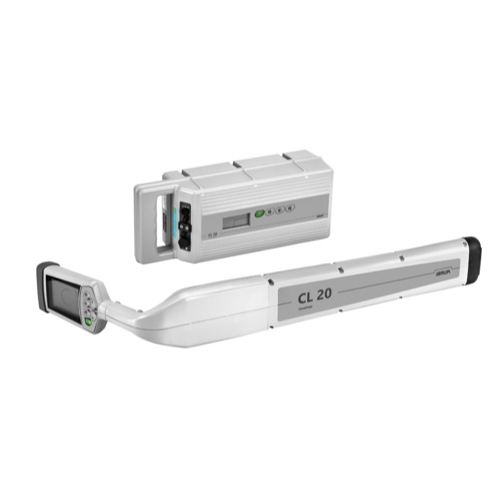

BAUR CL 20 ຕົວຕັ້ງສາຍເຄເບີ້ນ (5 – 25,000 ohm, 126 dB)
Transmitter
Operating frequencies 815 Hz, 8 kHz, 33 kHz, 82 kHz, 2 kHz, 10 KHz, 491 Hz, 512 Hz, 640 Hz, 982 Hz,1090 kHz, 8440 kHz, 9820 kHz, 32,768 kHz
Load adjustment: 5 – 25,000 ohm (automatic)
Output power: 10 power settings
Low and medium frequencies: 0.2 W – 10 W
High frequencies: (above 44 kHz) 0.2 W – 1 W
Display indicators: AC load assistance measurement, relative ohms, voltage, current output, power level, frequency, mode, battery indication alert, low battery indicator audio/visual with modulated low battery warning transmitted to receiver
Battery type: 10.8 V, 10 Ah, 84.24 Wh lithium-ion battery
Battery life
- Continuous operation: 8 – 20 h (depending on load, frequency,
power settings)
- Intermittent: 40 – 60 h
Dimensions (W x H x D): Approx. 410 x 160 x 150 mm
Weight: 2.7 kg
Receiver
Operating frequencies
Active: 815 Hz, 8 kHz, 33 kHz, 82 kHz, 2 kHz, 10 KHz, 491 Hz, 512 Hz, 640 Hz, 982 Hz,1090 kHz, 8440 kHz, 9820 kHz, 32,768 kHz
Passive: 50 Hz, 150 Hz, 250 Hz, 350 Hz, 450 Hz, 60 Hz, 180 Hz, 300 Hz, 420 Hz, 540 Hz; LiveSound™; Radio Frequency; Rectified CP
50 Hz and Rectified CP 60 Hz
Operating modes
▪ Peak method
▪ Pinpoint peak method
▪ Null method
▪ Simultaneous peak/null
▪ Tracing with right/left indication
Display indicators: Backlit segmented LCD bar graph, battery
condition, continuous mode signal strength, depth measurement, line orientation, left/ right line guidance, operating mode, volume level and function indicators
Acoustic indication: Variable pitch and live sound, 4 volume
selections including mute
Current measurement: Display of current level of target and nearby
conductors
Gain adjustment:
-Left/right guidance mode: automatic
-All other operating modes: manual gain adjustment & automatic centering
Signal strength: LCD bar display, Digital absolute value: 0 – 999
Dynamic range: 126 dB
Depth measurement
Digital: 0.02 – 15 m with accuracy > 5% of depth
Battery type: 10.8 V, 5.2 Ah, 56.16 Wh lithium-ion battery
Battery life
Continuous operation: Approx. 30 h
Intermittent: Approx. 82 h
Dimensions (W x H): Approx. 770 x 240 mm
Weight: 1.9 kg
General
Safety and EMC:
CE compliant in accordance with
Low Voltage Directive (2014/35/EU) and
EMC Directive (2014/30/EU)
Degree of protection: IP65
Ambient temperature (operational): -20°C to +55°C
Storage temperature: -20°C to +55°C
Charger: 100 – 240 V, 50/60 Hz, max. 0.35 A
Standard delivery
▪ Receiver incl. lithium-ion battery
▪ Transmitter incl. lithium-ion battery
▪ Connection cable 3 m, with connection clips
▪ Earth spike
▪ Charger AC 100 – 240 V
▪ Car charger, 12 V
▪ Carrying bag for receiver and transmitter
▪ User manual
