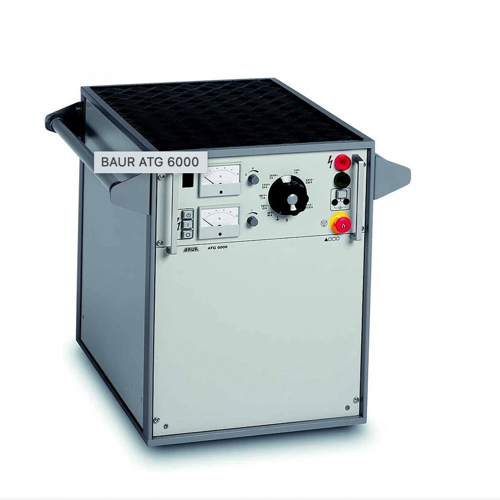

BAUR ATG 6000 Burn Down Transformer (200 – 260 V, 50/60 Hz)
Technical data
Power supply: 200 – 260 V, 50/60 Hz
Option: 100 – 130 V, 50/60 Hz with external autotransformer
Max. power consumption: 5750 VA (in short-circuit)
Output voltage DC: Max. 15 kV
Output current AC:
90 Arms at AC 60 V
23 Arms at AC 230 V
11 Arms at AC 500 V
3.5 Arms at AC 1500 V
2.0 Arms at AC 2600 V
Output current DC:
1.0 A at DC 5000 V
0.65 A at DC 8500 V
0.35 A at DC 15000 V
Load capacity: Max. 14 μF
Internal discharging resistance: 15 kOhm
Ambient temperature (operational): -20 °C to +55 °C
Storage temperature: -30 °C to +70 °C
Dimensions (W x H x D): 519 x 656 x 400 mm
Weight Approx.: 92 kg
Standard delivery includes:
▪ BAUR burn down transformer ATG 6000, including:
– HV connection cable, 4 m, fix mounted
– Mains supply cord, 5 m
– Earth cable, 4 m, with earthing clamp
– User manual
