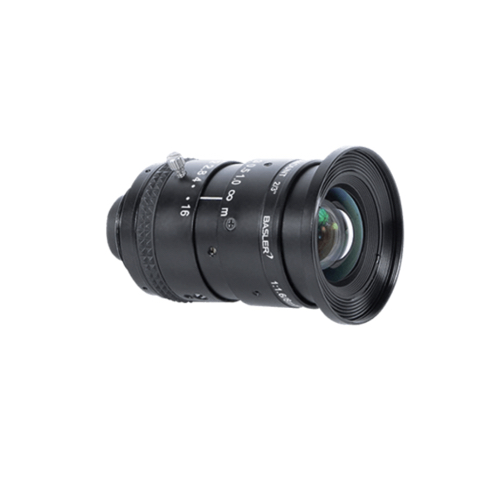

Basler C23-0816-2M ເລນ (8.6 mm ± 5 %; F1.6–F16)

Focal Length f: 8.6 mm ± 5 %

Aperture Range: F1.6–F16

Image Circle: 11 mm (2/3”)

Focus Range: 0.25 m to infinity

Optimum Working Distance: 0.5 m

Optimum Magnification: 0.032

Relative Illumination at Full Aperture: At least 50 %

Resolution (25 % MTF, Center, Full Aperture): Designed for 90 LP/mm

Optical Distortion: Typical -4.8 %

Angle of View, 1/1.8 Format: Horizontal: 46.2° (@ MOD) to 46.6° Vertical: 35.1° (@ MOD) to 35.5°

Angle of View, 2/3 Format: Horizontal: 55.7° (@ MOD) to 56.2° Vertical: 42.9° (@ MOD) to 43.1°

Wavelength Range: Visible (400–700 nm)

Pupil Magnification, ßP: 6.73

Chief Ray Angle, CRA: 9.9°

Front Focal Length, sF: 6.3 mm

Back Focal Length, sF: 8.4 mm

Principal Point Separation, HH: 43.79 mm

Entrance Pupil Position, sEP: 15.3 mm

Exit Pupil Position, sAP: -57.55 mm

Overall Optical Length, d: 75.01 mm

Flange Back: 17.526 mm

Mount: C-mount

Weight: Approx. 136 g

Focus/Iris Operation: Manual Operating angle: 190°
