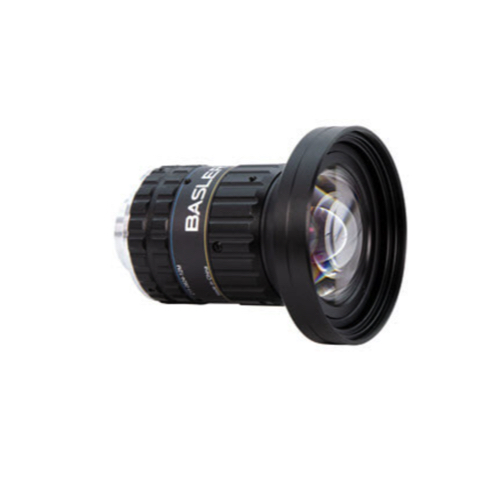

Basler C11-0824-12M ເລນ (8.46 mm ± 5 %; F2.4–F16)

Focal Length f: 8.46 mm ± 5 %

Aperture Range: F2.4–F16

Aperture with Highest Resolution: F2.8

Image Circle: 17.6 mm (1.1”)

Focus Range: 0.1 m to infinity

Optimum Working Distance: 0.4 m

Relative Illumination at Full Aperture: 40 %

Resolution: Designed for 140 LP/mm

MTF Measured in the Center at 90 LP/mm / 140 LP/mm (conditions: F2.4, polychromatic, 0.45 m working distance): 0.55 / 0.40

MTF Measured in the Corner at 90 LP/mm / 140 LP/mm (conditions: F2.4, polychromatic, 0.45 m working distance): 0.25 / 0.12

Optical Distortion: Typical -9.5 %

Angle of View, 1/1.8 Format: Horizontal: 83.7° Vertical: 48.8°

Angle of View, 2/3 Format: Horizontal: 84.0° Vertical: 65.5°

Wavelength Range: Visible (400–700 nm)

Back Focal Length, sF: 9.63 mm

Flange Back: 17.526 mm

Mount: C-mount

Weight: Approx. 264.4 g

Focus/Iris Operation: Manual
