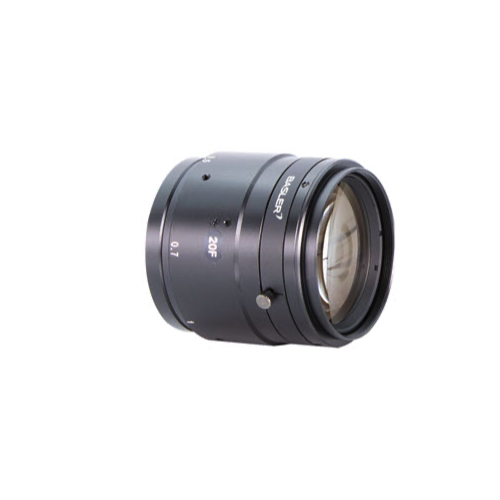

Basler C10-5014-2M ເລນ (50 mm ± 5 %; F1.4–F16)

Focal Length f: 50 mm ± 5 %

Aperture Range: F1.4–F16

Image Circle: 16 mm (1")

Focus Range: 0.5 m to infinity

Optimum Working Distance: 1.0 m

Relative Illumination at Full Aperture: 47 %

Resolution (25 % MTF, Center, Full Aperture): Designed for 64 LP/mm

Optical Distortion: Typical 0.82 %

Angle of View, 1 Format: Horizontal: 14.5° Vertical: 10.92°

Angle of View, 1/1.2 Format: Horizontal: 12.8° Vertical: 8.1°

Wavelength Range: Visible (400–700 nm)

Pupil Magnification, ßP: 22.2

Chief Ray Angle, CRA: 10.25°

Front Focal Length, sF: -11.61 mm

Back Focal Length, sF: 14.55 mm

Principal Point Separation, HH: -26.71 mm

Entrance Pupil Position, sEP: 66.47 mm

Overall Optical Length, d: 62.13 mm

Flange Back: 17.526 mm

Mount: C-mount

Weight: Approx. 200 g

Focus/Iris Operation: manual operating angle: 230°
