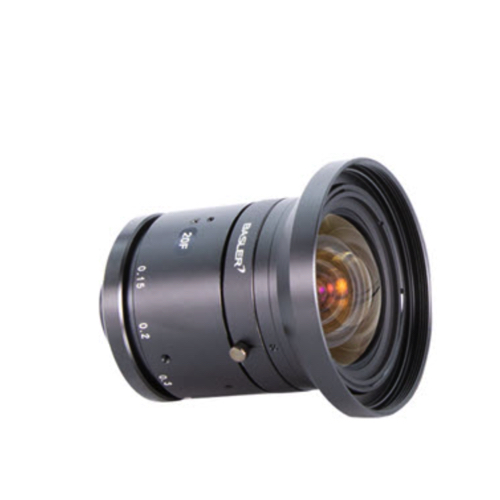

Basler C10-0814-2M ເລນ (8.25 mm ± 5 %; F1.4–F16)

Focal Length f: 8.25 mm ± 5 %

Aperture Range: F1.4–F16

Image Circle: 16 mm (1”)

Focus Range: 0.1 m to infinity

Optimum Working Distance: 1.0 m

Relative Illumination at Full Aperture: 36 %

Resolution (25 % MTF, Center, Full Aperture): Designed for 64 LP/mm

Optical Distortion: Typical -7.07 %

Angle of View, 1\: Horizontal: 79.66° Vertical: 62.92°

Angle of View, 1/1.2\: Horizontal: 72.3° Vertical: 47.85°

Wavelength Range: Visible (400–700 nm)

Pupil Magnification, ßP: 45.73

Chief Ray Angle, CRA: 5.6°

Front Focal Length, sF: 16.05 mm

Back Focal Length, sF: 11.65 mm

Principal Point Separation, HH: 41.62 mm

Entrance Pupil Position, sEP: 16.67 mm

Overall Optical Length, d: 74.17 mm

Flange Back: 17.526 mm

Mount: C-mount

Weight: Approx. 220 g

Focus/Iris Operation: Manual operating angle: 211.3°
