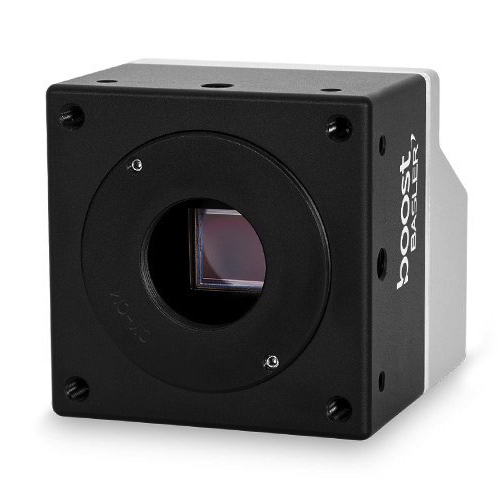

Basler boA5120-150cc ກ້ອງຖ່າຍຮູບສະແກນພື້ນທີ່ (25 MP; Gpixel GMAX0505)

Resolution (H x V Pixels): 5120 x 5120 (8-bit pixel format)

Resolution: 25 MP

Sensor Type: Gpixel GMAX0505 / Progressive scan CMOS / Global shutter

Sensor Format: 1.1 inch

Effective Sensor Diagonal: 18.1 mm

Pixel Size (H x V): 2.5 µm x 2.5 µm

Frame Rate (at Default Settings): 150 fps (with pixel format set to Mono 8)

Mono / Color: Color

Image Data Interface: CoaXPress, 4x CXP-12, 2x CXP-12, 1x CXP-12, 4x CXP-6, 2x CXP-6

Synchronization: Via hardware trigger / Via software trigger / Via free run

Exposure Time Control: Via hardware trigger / Programmable via the camera API

I/O Lines: 1 galvanic-isolated input line / 1 galvanic-isolated output line

Lens Mount: Universal camera front, suitable for the following lens mounts: C-mount, F-mount, M42x1-mount (FBD 12 mm), M58x0.75-mount (FBD 11.48 mm)

Lens mounts are not included with the camera and must be ordered separately as accessories.

Size (L x W x H): 66 mm x 65 mm x 65 mm

Weight: 400 g

Software: Basler pylon Windows (version 6.3 or higher) Basler pylon Linux x86 (64 bit) (version 6.3 or higher)

The Basler CoaXPress 2.0 boA5120-150cc camera with the GMAX0505 CMOS sensor delivers 150 frames per second with a 25 MP resolution.
