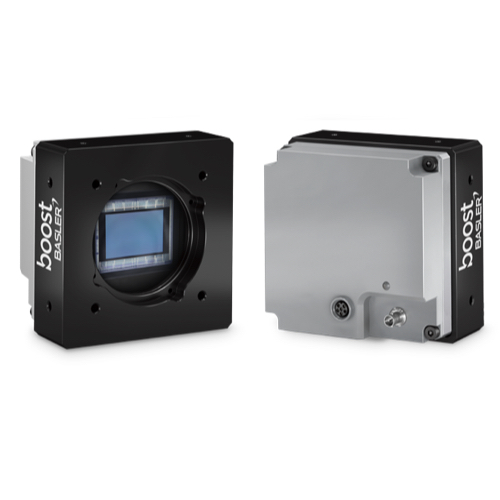

Basler boA4504-100cc ກ້ອງຖ່າຍຮູບສະແກນພື້ນທີ່ (20 MP; Sony IMX531-AAQJ-C)

Resolution (H x V Pixels): 4512 x 4512 (full resolution) 4504 x 4504 (default resolution)

Resolution: 20 MP

Sensor Type: Sony IMX531-AAQJ-C / Progressive scan CMOS / Global shutter

Sensor Format: 1.1 inch

Effective Sensor Diagonal: 17.5 mm

Pixel Size (H x V): 2.74 x 2.74 µm

Mono / Color: Color

Image Data Interface: CoaXPress, 2x CXP-12 (2.5–12.5 Gbps per channel)

Synchronization: Via hardware trigger / Via software trigger / Via free run

Exposure Time Control: Via hardware trigger / Programmable via the camera API

I/O Lines:

1 opto-coupled input line

2 general purpose I/O (GPIO) lines

Lens Mount: Universal camera front, suitable for the following lens mounts: C-mount, F-mount, M42x0.75-mount (FBD 16 mm), M42x1-mount (FBD 16 mm), M42x1-mount (FBD 45.56 mm))

Lens mounts are not included with the camera and must be ordered separately as accessories

Size (L x W x H): 45 x 80 x 80 mm

Weight: 442 g

Software: Basler pylon Windows (version 6.3 or higher) Basler pylon Linux x86 (64 bit) (version 6.3 or higher)

The Basler CoaXPress 2.0 boA4504-100cc camera with the Sony IMX531 CMOS sensor delivers 100 frames per second with a 20 MP resolution.
