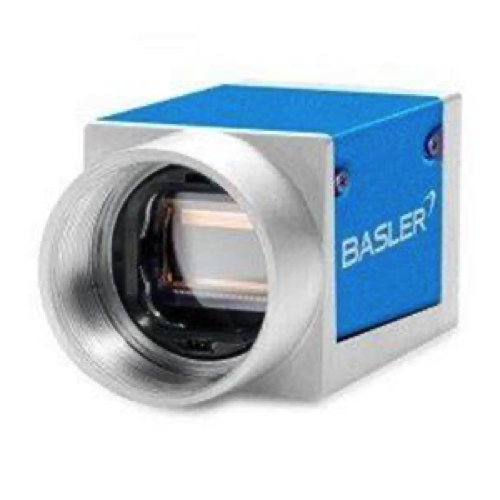

Basler acA5472-17umMED ກ້ອງຖ່າຍຮູບສະແກນພື້ນທີ່ (5496 x 3672 px; 5472 x 3648 px; Sony IMX183CLK-J)

Resolution (H x V Pixels): 5496 x 3672 (full resolution)/ 5472 x 3648 (default resolution)

Resolution: 20 MP

Sensor Type: Sony IMX183CLK-J Progressive scan CMOS

Sensor Format: 1 inch

Effective Sensor Diagonal: 15.86 mm

Pixel Size (H x V): 2.40 x 2.40 μm

Frame Rate (at Default Settings): 17 fps, 53 fps (with sensor binning)

Mono / Color: Mono

Image Data Interface: USB 3.0, nominal max. 5 Gbit/s (SuperSpeed)

Synchronization: Via hardware trigger, Via software trigger, Via free run

Exposure Time Control: Via hardware trigger, Programmable via the camera API

Camera Power Requirements: ≈2.9 W (typical) @ 5 VDC (minimum 4.5 VDC)

Lens Mount: C-mount

Size (ø x L): 29.3 x 29 x 29 mm (without lens mount or connectors) 48.2 x 29 x 29 mm (with lens mount and connectors)

Weight: <80 g
