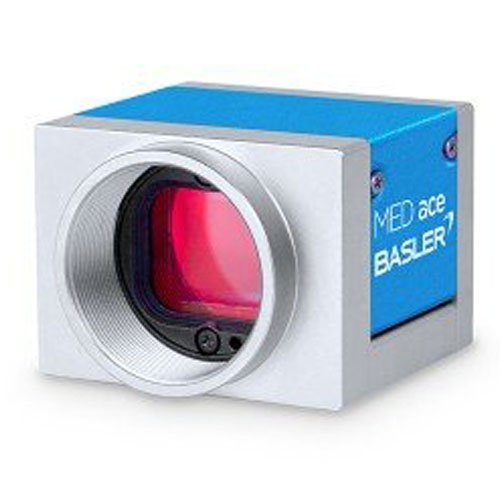

Basler acA4096-30ucMED ກ້ອງຖ່າຍຮູບສະແກນພື້ນທີ່ (4112 x 2176 px; 4096 x 2168 px; CMOS Sony IMX267LQR)

Resolution (H x V Pixels): 4112 x 2176 (full resolution)/ 4096 x 2168 (default resolution)

Resolution: 8.9 MP

Sensor Type: Sony IMX267LQR Progressive scan CMOS

Sensor Format: 1 inch

Effective Sensor Diagonal: 16.1 mm

Pixel Size (H x V): 3.45 x 3.45 µm

Frame Rate (at Default Settings): 32.3 fps

Mono / Color: Color

Image Data Interface: USB 3.0, nominal max. 5 Gbit/s (SuperSpeed)

Synchronization: Via hardware trigger, Via software trigger, Via free run

Exposure Time Control: Via hardware trigger, Programmable via the camera API

Camera Power Requirements: ≈3.2 W (typical) @ 5 VDC (minimum 4.5 VDC)

Lens Mount: C-mount

Size (ø x L): 35.8 x 40 x 30 mm (without lens mount or connectors)/ 48.2 x 40 x 30 mm (with lens mount and connectors)

Weight: <80 g
