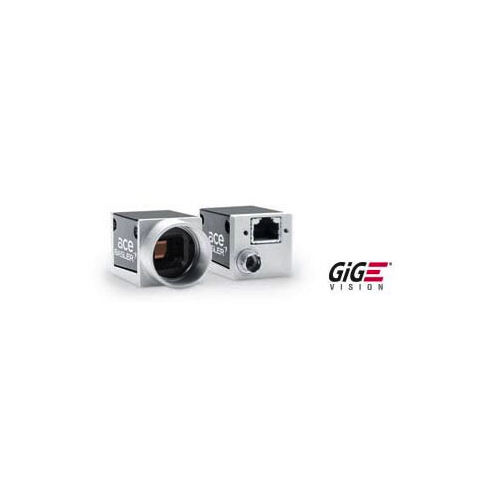

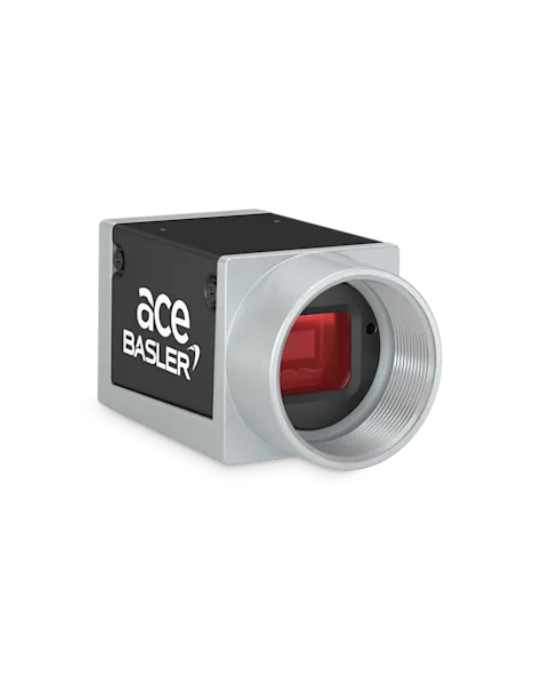

Basler acA3800-10gc ກ້ອງຖ່າຍຮູບສະແກນພື້ນທີ່ (3840 x 2748 px; onsemi MT9J003)

Resolution (H x V Pixels): 3840 x 2748

Resolution: 10 MP

Sensor Type: onsemi MT9J003 / Progressive scan CMOS / Rolling shutter

Sensor Format: 1/2.3 inch

Effective Sensor Diagonal: 7.9 mm

Pixel Size (H x V): 1.67 x 1.67μm

Frame Rate (at Default Settings): 10 fps

Mono / Color: Color

Image Data Interface: Fast Ethernet (100 Mbit/s) Gigabit Ethernet (1000 Mbit/s)

Synchronization: Via hardware trigger / Via software trigger / Via free run

Exposure Time Control: Via hardware trigger / Programmable via the camera API

Camera Power Requirements: ≈3.7 W when using Power over Ethernet / ≈3.3 W @ 12–24 VDC when supplied via I/O connector

I/O Lines: 1 opto-coupled input line / 1 opto-coupled output line

Lens Mount: C-mount

Size (L x W x H): 42.0 x 29 x 29 mm (without lens mount or connectors) / 60.3 x 29 x 29 mm (with lens mount and connectors)

Weight: <90 g
