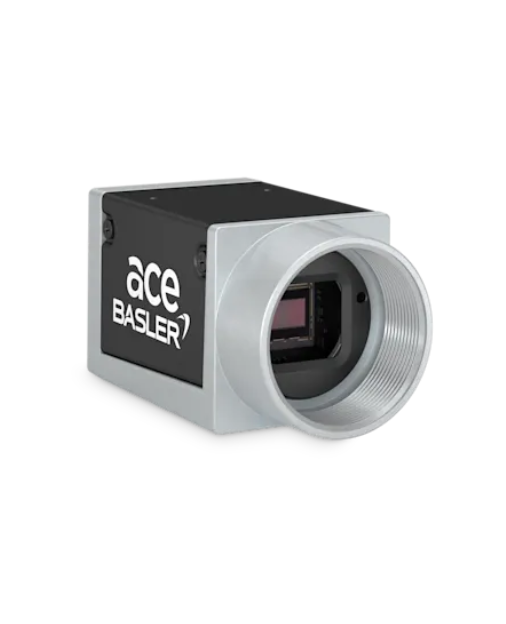

Basler acA1920-50gm ກ້ອງຖ່າຍຮູບສະແກນພື້ນທີ່ (1936 x 1216 px; 1920 x 1200 px; Sony IMX174LLJ-C)

Resolution (H x V Pixels): 1936 x 1216 (full resolution) / 1920 x 1200 (default resolution) / You can change the resolution by changing the image ROI.

Resolution: 2.3 MP

Sensor Type: Sony IMX174LLJ-C / Progressive scan CMOS / Global shutter

Sensor Format: 1/1.2 inch

Effective Sensor Diagonal: 13.4 mm

Pixel Size (H x V): 5.86 x 5.86 μm

Frame Rate (at Default Settings): 50 fps / Higher frame rates are possible if you change the Packet Size to 4000 and the Bandwidth Reserve to 5.

Mono / Color: Mono

Image Data Interface: Fast Ethernet (100 Mbit/s) Gigabit Ethernet (1000 Mbit/s)

Synchronization: Via hardware trigger / Via software trigger / Via free run

Exposure Time Control: Via hardware trigger / Programmable via the camera API

Camera Power Requirements: ≈3.2 W (typical) / ≈3.4 W (max.) when using Power over Ethernet / ≈2.8 W (typical) / ≈3.0 W (max.) @ 12–24 VDC when supplied via I/O connector

I/O Lines: 1 opto-coupled input line / 1 opto-coupled output line / 1 general purpose I/O (GPIO) line

Lens Mount: C-mount

Size (L x W x H): 42.0 x 29 x 29 mm (without lens mount or connectors) / 60.3 x 29 x 29 mm (with lens mount and connectors)

Weight: <90 g
