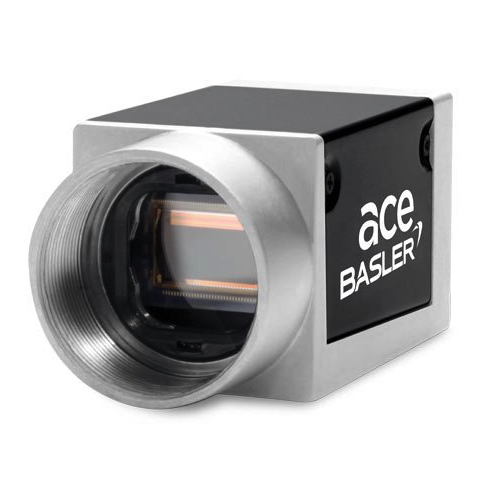

Basler acA1920-40um ກ້ອງຖ່າຍຮູບສະແກນພື້ນທີ່ (1936 x 1216 px; 1920 x 1200 px; Sony IMX249LLJ-C)

Resolution (H x V Pixels): 1936 x 1216 (full resolution) / 1920 x 1200 (default resolution) / changed by changing Image ROI

Resolution: 2.3 MP

Sensor Type: Sony IMX249LLJ-C / Progressive scan CMOS/Global shutter

Sensor Format: 1/1.2 inch

Effective Sensor Diagonal: 13.3 mm

Pixel Size (H x V): 5.86 x 5.86 µm

Frame Rate (at Default Settings): 41 fps

Mono / Color: Mono

Image Data Interface: USB 3.0, nominal max. 5 Gbit/s (SuperSpeed)

Synchronization: Via hardware trigger / Via software trigger / Via free run

Exposure Time Control: Via hardware trigger / Programmable via the camera API

Camera Power Requirements: ≈2.5 W (typical) @ 5 VDC / ≈2.7 W (max.)

I/O Lines: 1 opto-coupled input line / 1 opto-coupled output line / 2 general purpose I/O (GPIO) lines

Lens Mount: C-mount

Size (L x W x H): 29.3 x 29 x 29 mm (without lens mount or connectors) 48.2 x 29 x 29 mm (with lens mount and connectors)

Weight: <80 g
