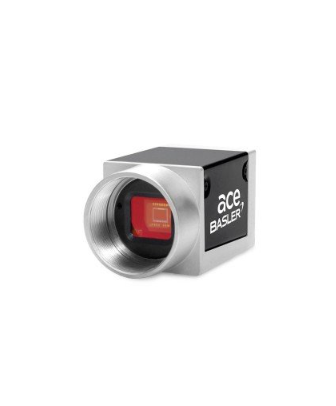

Basler acA1600-60gc ກ້ອງຖ່າຍຮູບສະແກນພື້ນທີ່ (1600 x 1200 px; e2v EV76C570 ACT; Color)

Resolution (H x V Pixels): 1600 x 1200

Resolution: 2 MP

Sensor Type: e2v EV76C570 ACT / Progressive scan CMOS / Global shutter / Rolling shutter / The shutter mode can be set via software.

Sensor Format: 1/1.8 inch

Effective Sensor Diagonal: 9.0 mm

Pixel Size (H x V): 4.5 x 4.5 μm

Frame Rate (at Default Settings): 60 fps If you want to obtain the maximum frame rate, change the Packet Size to 4000 and the Bandwidth Reserve to 5.

Mono / Color: Color

Image Data Interface: Fast Ethernet (100 Mbit/s) Gigabit Ethernet (1000 Mbit/s)

Synchronization: Via hardware trigger / Via software trigger / Via free run

Exposure Time Control: Via hardware trigger / Programmable via the camera API

Camera Power Requirements: ≈2.7 W when using Power over Ethernet / ≈2.1 W @ 12 VDC when supplied via I/O connector

I/O Lines: 1 opto-coupled input line / 1 opto-coupled output line

Lens Mount: C-mount

Size (L x W x H): 42.0 x 29 x 29 mm (without lens mount or connectors) / 60.3 x 29 x 29 mm (with lens mount and connectors)

Weight: <90 g

Conformity: CE (includes RoHS), EAC, UL Listed, FCC, GenICam, GigE Vision, IP30, IEEE 802.3af (PoE), REACH, KC

Software: Basler pylon Camera Software Suite (version 6.0 or higher) Available for Windows, Linux x86, Linux ARM, macOS, and Android
