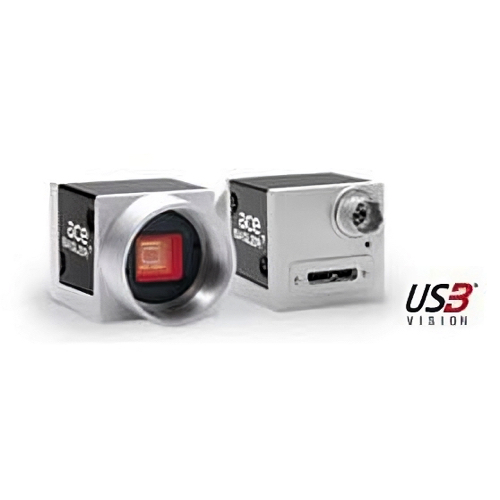

Basler acA1600-20uc - ICX274 ກ້ອງຖ່າຍຮູບສະແກນພື້ນທີ່ (1624 x 1234 pixel; Sony ICX274AQ)

Resolution (H x V Pixels): 1624 x 1234

Resolution: 2 MP

Sensor Type: Sony ICX274AQ / Progressive scan CCD / Global shutter

Sensor Format: 1/1.8 inch

Effective Sensor Diagonal: 9.0 mm

Pixel Size (H x V): 4.4 x 4.4 μm

Frame Rate (at Default Settings): 20 fps

Mono / Color: Color

Image Data Interface: USB 3.0, nominal max / 5 Gbit/s (SuperSpeed)

Synchronization: Via hardware trigger / Via software trigger / Via free run

Exposure Time Control: Via hardware trigger / Programmable via the camera API

Camera Power Requirements: ≈3.5 W (typical and max.) @ 5 VDC

I/O Lines: 1 opto-coupled input line / 1 opto-coupled output line / 2 general purpose I/O (GPIO) lines

Lens Mount: C-mount

Size (L x W x H): 29.3 x 29 x 29 mm (without lens mount or connectors) / 48.2 x 29 x 29 mm (with lens mount and connectors)

Weight: <80 g

Conformity: CE (includes RoHS), EAC, UL Listed, FCC, GenICam 2.x (including PFNC 2.x and SFNC 2.x), IP30, USB3 Vision, REACH, KC

Software: Basler pylon Camera Software Suite (version 4.0 or higher) Available for Windows, Linux x86, Linux ARM, macOS, and Android

Product Line: ace classic
