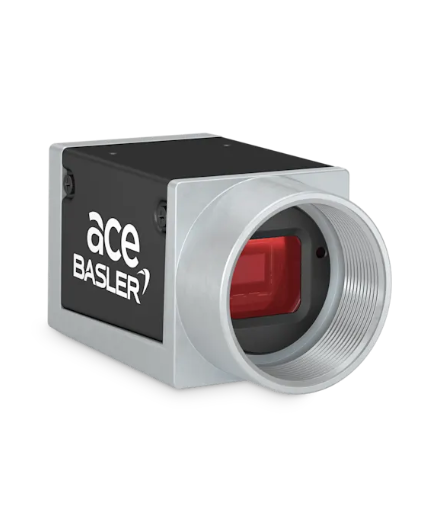

Basler acA1440-73gc ກ້ອງຖ່າຍຮູບສະແກນພື້ນທີ່ (1456 x 1088 px; 1440 x 1080 px; Sony IMX273LQR-C)

Resolution (H x V Pixels): 1456 x 1088 (full resolution) / 1440 x 1080 (default resolution) / You can change the resolution by changing the image ROI.

Resolution: 1.6 MP

Sensor Type: Sony IMX273LQR-C / Progressive scan CMOS / Rolling shutter

Sensor Format: 1/2.9 inch

Effective Sensor Diagonal: 6.3 mm

Pixel Size (H x V): 3.45 x 3.45 μm

Frame Rate (at Default Settings): 73 fps (at default resolution) / 68 fps (at default settings) If you want to obtain the maximum frame rate at default resolution, change the Packet Size to 4000 and the Bandwidth Reserve to 5.

Mono / Color: Color

Image Data Interface: Fast Ethernet (100 Mbit/s) Gigabit Ethernet (1000 Mbit/s)

Synchronization: Via hardware trigger / Via software trigger / Via free run

Exposure Time Control: Via hardware trigger / Programmable via the camera API

Camera Power Requirements: ≈3.2 W (typical) when using Power over Ethernet / ≈2.9 W (typical) @ 12–24 VDC when supplied via I/O connector

I/O Lines: 1 opto-coupled input line / 1 opto-coupled output line / 1 general purpose I/O (GPIO) line

Lens Mount: C-mount

Size (L x W x H): 42.0 x 29 x 29 mm (without lens mount or connectors) / 60.3 x 29 x 29 mm (with lens mount and connectors)

Weight: <90 g

The Basler acA1440-73gc GigE camera with the Sony IMX273 CMOS sensor delivers 73 frames per second at 1.6 MP resolution.
