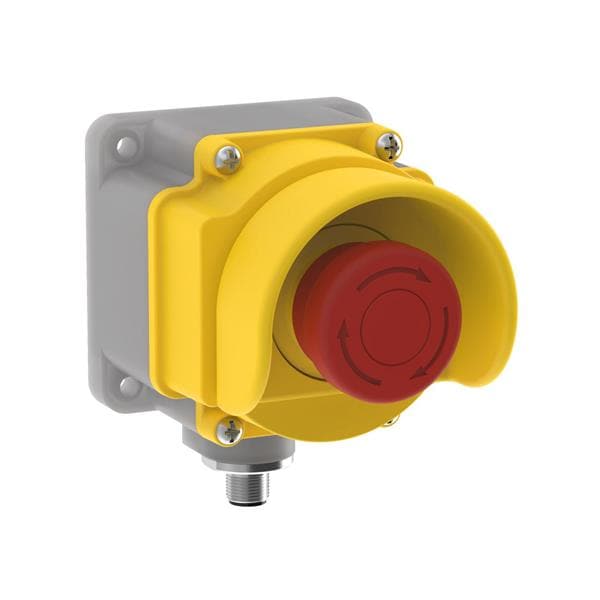

Banner Engineering SSA-EB1PLGRS1-12ED1Q8 ປຸ່ມກົດຫຼຸດສະຫນັບສະຫນູນສຸດທ້າຍ: ຕິດຕັ້ງແບບຝັງ 40 mm ປຸ່ມກົດ; ອັດຕາການປ້ອງກັນສິ່ງແວດລ້ອມ: IP65; ແສງສວ່າງ; ສີ: ສີຂຽວ, ສີແດງ ແບບສົດ/ກະຕຸ້ນ; 2 N.C. ຕິດຕໍ່ຄວາມປອດໄພ; 1 N.O. ຕິດຕໍ່ຊ່ວຍເຫຼືອ; 8 ໝຸ່ມ M12 QD; ESC-1-YW ມີການຕິດຕັ້ງປຸ່ມຄຸ້ມຄອງ

Life: 250000 Cycle

Width: 80.3 mm

Height: 102.1 mm

Length: 80.8 mm

Actuator: Flush

Material: Polycarbonate (PC)

IP Rating: IP65

Illuminated: Illuminated

Unit Weight: 431 g

Contact Form: 3PST

Panel Cutout: 30.5 mm

Actuator Style: Twist-to-Release

Current Rating: 2 A

Mounting Style: Panel Mount

Switch Function: ON - OFF, OFF - ON

Housing Material: Polycarbonate (PC)

Actuator Material: Thermoplastic (TP)

Termination Style: Quick Connect

Voltage Rating AC: 24 VAC

Voltage Rating DC: 24 VDC

Illumination Color: Green, Red

Maximum Operating Temperature: + 55 C

Minimum Operating Temperature: - 25 C
