Temperature range: -80℃ ~ +105℃
Temperature stability: ±0.01℃ /30min
Temperature uniformity: 0.005℃ ~ 0.01℃
Resolution: 0.001℃
Heat up: 1 hour from ambient to 105℃
Cool down: 1.5 hour from ambient to -80℃
Well size: Φ130 x 480(mm)
Tank Volume: 6.37 litter
Cry-cooler: Two-Stage
Media: Soft water/ Ethanol (-80℃~+20℃)
Power Supply: 220V/50Hz (110V is optional)
Ambient: <30℃
Power Consumption:4000W
Refrigeration Type: R23, R404
Dimension: 810mmx 600mm x 1180mm
Net Weight: 150kg
SCOPLE OF DELIVERY
Low temperature calibrator / liquid bath
Test frame
Flexible hose for draining liquid
Fuse x 2
Power cord with 100-240VAC
Plastic well cover
User manual
Liquid calibration baths are the most stable and uniform temperature sources for doing calibration comparison of temperature probes and sensors in a laboratory. They use a large fluid mass to maintain a stable and uniform test environment that provides the flexibility to calibrate probes and sensors of various sizes, shapes, and lengths.

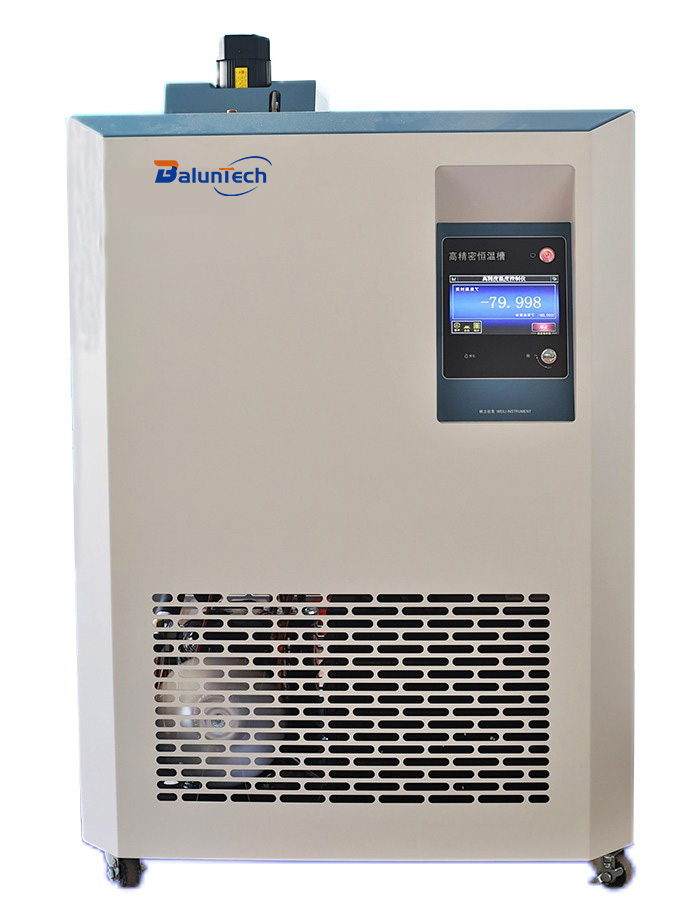

The BL633 series low temperature calibration bath are ideal for lab managers and technicians in government, corporation and independent calibration labs who needs a bath with good stability, uniformity, and speed to temperature for calibrating thermometers and sensors of various sizes and shapes.
KEY FEATURES
One hour cooling time from ambient to -80℃.
Stability of 0.01℃
Fast heating and cooling speed
130mm diameter large tank area
Programmable temperature control, LED shows live temperature value and curve changes
RS485, Modbus communication
Auto fluid level protection and adjust
APPLICATION
Calibrate PRTs
Calibrate thermistors
Calibrate thermocouples
Calibrate liquid-in-glass
Calibrate thermometers
Datasheet
