Max force: 500N
Max motion: 300mm
Max motion speed: 300mm/min
Maximum column deviation under load: 1.3mm
Motion precision: +/- 1.2mm
Max force: 500N
Max motion: 300mm
Max motion speed: 300mm/min
Maximum column deviation under load: 1.3mm
Motion precision: +/- 1.2mm
Motion resolution: 0.01mm
Program memory: 10
Maximal number of cycles in one program: 10000
Maximal number of steps in one cycle: 8
Working temperature: -10 ÷ +40°C
Interfaces: wireless module, RS232C, USB
Display: LCD graphical
Supply: ~230V 50Hz 100VA / 24V 4A
Dimensions: 238x407x680mm
Weight: 22.5kg

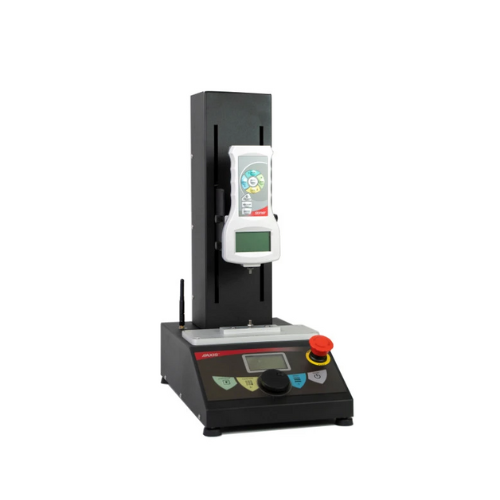

STAV500 vertical test stand with electric drive is designed for FB50, FB200, FB500, FC50, FC200, and FC500 force gauges.
Force up to 500N and travel 300mm.
Thanks to the precise programming motion mechanism STAV500 enables to perform of precise measurements during e.g. material resistance testing.
STAV500 optionally can be equipped with a Bluetooth module for wireless communication with a force gauge.
Datasheet
Manual
Video
