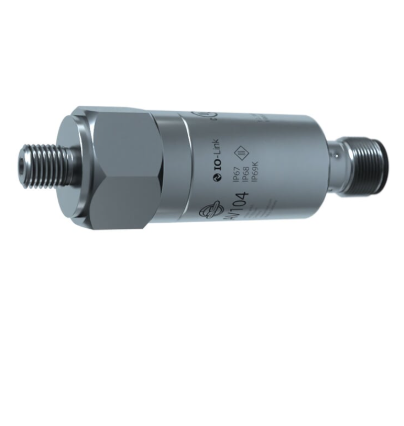

Autosen AV104 ເຄື່ອງຈັບສັນຍານສະເຫຼີມສົດດ້ວຍ IO-Link ISO10816

General information

Range of application: Vibration monitoring on small machines: power < 300 kW, speed 120 ... 600 rpm

Frequency range: 2 ... 10000 Hz

Vibration measuring range: 0 ... 45 mm/s (RMS)

Number of measuring axes: 1

Temperature measurement: -30°C ...80 °C (only IO-Link)

Parametrisation options: Vibration (Veff / aPeak); hysteresis / window; switch points; switching logic; fault indication; self-test; frequency filter

Outputs / inputs

Switching output: 2x Normally closed (NC)

Comment Switching output: Normally open/ normally closed parameterisable via IO-Link

IO-Link: Yes

Electrical data

Operating voltage: 10 ... 30 V DC

Voltage type: Direct voltage (DC)

Electrical design: PNP, NPN*, *IO-Link parameterisation

Current carrying capacity max.: 100 mA

Voltage drop max.: 2 V

Current consumption max.: 250 mA

Protection class: III

Short-circuit protection: Yes

Overload-proof: Yes

Reverse polarity protection: Yes

Mechanical data

Type of installation: Threaded pin

Material of housing: V4A (1.4404)

Protection rating:

IP67

IP68

IP69k

Electrical connection: M12, 4-pin, Contacts gold-plated

Accuracy

Linearity deviation: < 2 %

Accuracy (temperature measurement): ± 2.5 K + (0.2 x (ambient temperature - surface temperature))

Accuracy: < 4 kHz ±10 %; < 10 kHz < 3 dB

Ambient conditions

Ambient temperature min.: -30 °C

Ambient temperature max.: 80 °C

Accessories included with delivery: 2 threaded pins
