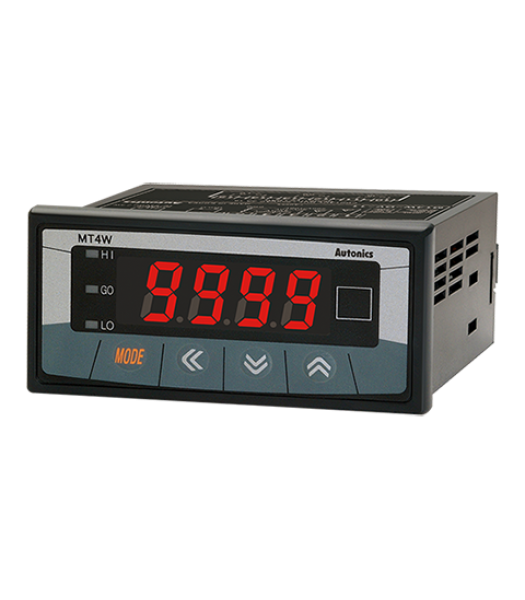

Autonics MT4W-AA-41 ເຄື່ອງວັດແທກແຜງດິຈິຕອນ

Display method: 4-digit 7-segment LED

Character height: 14.2mm

Max. display Range: -1999 to 9999

Measurement: AC current, Frequency

Input specification: 0-5A, 0-2.5A, 0-1A, 0-500mA, 0-250mA, 0-100mA, 0-50mA

AC Measurement: Average value (AVG), Root mean square value (RMS)

Power supply: 100-240VAC~ 50/60Hz

Output_Main Output(Comparative Value): Relay (HI, GO, LO)

Max. allowable input: 110% F.S. for each measured input range

A/D conversion method: ?? (Sigma Delta) ADC

Sampling cycle: 16.6ms

Frequency measurement: Measurement range: 0.100 to 9999Hz(variable by decimal point position)

Hold function: Includes (external hold function)

Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃

Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH

Insulation type: Double insulation or reinforced insulation(mark: , dielectric strength between the measuring input part and the power part: 1kV)

Weight: Approx. 326g (approx. 211g)
