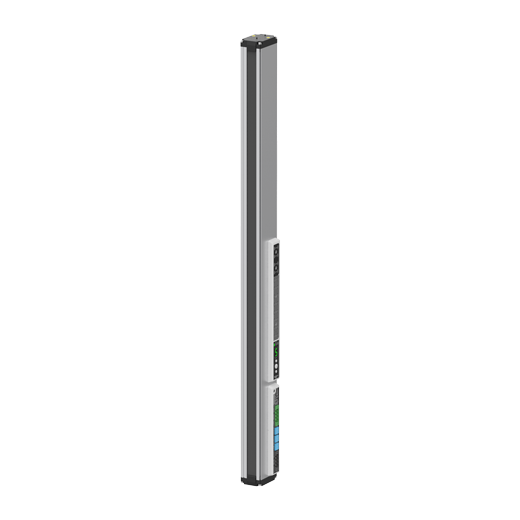

Autonics BWML Line-beam Mapping Sensors (95 mm ± 10 mm, ≤ 120 ms)
Sensing method: Diffuse reflective type
Beam pattern: Line-beam type
Light source: Infrared LED (850 nm modulated light)
Sensing distance: 95 mm ± 10 mm
Sensing target: Transparent or opaque glass plate
CH ordering orientation: Forward (bottom = 1 CH) / Backward (top = 1 CH) (parameter setting)
Sensing CH:; 4 to 62 CH
Sensing target: pitch 20 mm to ordered specification
Response time: ≤ 120 ms
Operation mode: Light ON / Dark ON (parameter setting)
Function Background: sensing mode, installation guide mode, sensing level setting, output option, self-diagnosis
Indicator: Output indicator (red), stability indicator (green), status indicator (green, yellow, red)
Weight (packaged): ≈3.64 kg (≈ 4.8 kg) (based on BWML82-20CLL, BWML82-20ECL
