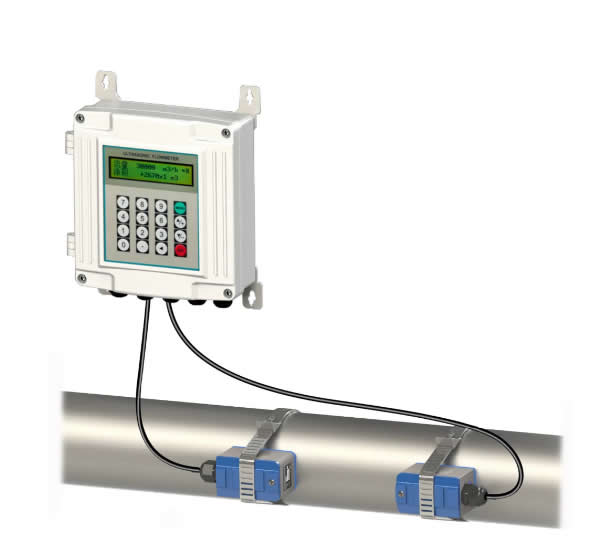

Auto Instrument TUF-2000S Clamp-on Ultrasonic Flow Meter
Linearity: 0.50%
Repeatability: 0.20%
Accuracy: upto ±1% for velocity above 0.2m/s
Response Time: 0-999 second, user-configurable
Flow Range: ±32m/s
Measuring Pipe Size: 15mm-6000mm
Units: English (U.S.) or metric
Totalizer: 7-digit totalizer for net, positive and negative flow respectively
Liquid Types: Any single uniform liquid which can transmit ultrasonic
Security: Setup values Modification Lockout. Access code needs unlocking
Display: 4×16 character
CommunicationInterface: RS-232 interface. 75-57600bps, compatible with Fuji ultrasonic flowmeter and other UFM on enquiry.
Transducers: Model M1 for standard, other 4 models for optional
Transducer Cable:Standard 5m x2 or can be extended to 10m x2
Power Supply: 3 AAA built-in Ni-MH batteries (for over 12 hours of operation). 100V-240VAC adapter
Data Logger: Built-in data logger can store over 2000 lines of data
Manual Totalizer: 7 digit, calibrating by key
Housing Material: Flaming retarding ABS
Size: 200×93×33mm
Handset Weight: 400g with batteries
Read the documentation carefully before ordering
