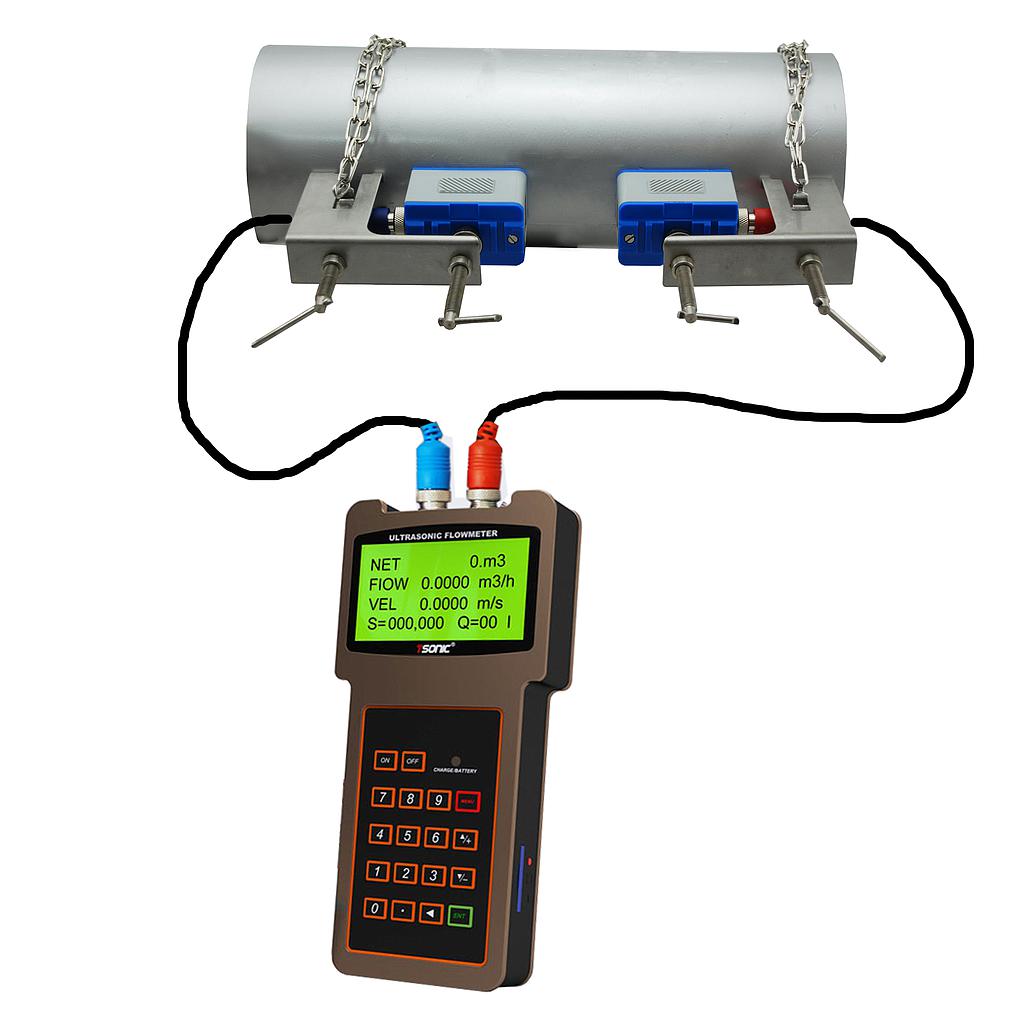

Auto Instrument HS,HM,TL-1 transmitter,5*2 cable ເຄື່ອງວັດແທກການໄຫຼ Ultrasonic ແບບມືຖື
Transmitter:
- Pipeline: Ultrasonic transit-time principle,Four-byte IEEE754 floating-point arithmetic
- Accuracy Flow:Better than ±1%
- Display LCD display with Chinese,English,Italian language
- Output: One OCT pule output(pules width 6-1000ms,Default 200ms)
- Data interface: Isolation of 232 communication interface, can upgrade flowmeter through PC
Pipeline Conditions:
- Pipe Material: Steel,Stainless steel,Cast iron,copper,PVC,aluminium,FRP etc.(liner allowed)
-Diameter: 15~6000mm
- Installation: Upstream 10D,downstream 5D,30D away from the pump outlet(D for
Medium:
- Fluid: Water,sea water,acid liquid,beer,alcohol,oil and any other liquid that can spread sonic
- Temperature: Temperature:-30~160 ℃
- Turbidity: 10000ppm and with little bubbles
- Velocity: 0~±10m/s
Operating Environment:
- Temperature: Transmitter:-20~60℃;Transducer:-30~160℃
- Humidity: Transmitter:85%RH;transmitter protection grade:IP67
Power: Three internal 1.2V,2000mAH rechargeable Ni-MH battery.Can work 12 hours fully charged.
Can achieve continuous measurement with AC90~260V power adapter
Comsumption: 1.5W
Case Material: Flame retardant ABS
Weight: 1.5W
Read the documentation carefully before ordering
