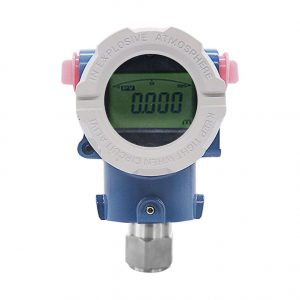

Auto Instrument AT3051TG ເຄື່ອງສົ່ງຄວາມກົດດັນ (0 - 10 Kpa ~ 0 - 30 Kpa)
Process Fluid : Liquid, Gas or Vapor
Application : Absolute Pressure, Gauge Pressure, Vacuum
Display : 5 Digits programmable & 0-100% Bargraph
Display Unit : Standard 22 different engineering unit; 5 Digits programmable for specialunit
Measuring Range : 0 - 10 Kpa ~ 0 - 30 Kpa (Minimum) ; 0 - 32 Mpa ~ 0 - 70 Mpa
Keypad : 3 internal keys forProgramming and output setting
Turndown Ratio : 100 : 1
Current Output : 4 - 20 mA 2 wires with Hart Signal (Compatible) Load : Rohm=(Vdc-9)*50
Accuracy : +/- 0.1% of span
Stability : +/-0.15% of URL for 2 years
Working Temperature : -25 to +95 °C
Power Supply : 9 ~ 36 VDC
Max. Pressure : 70 Mpa
Digital Communication : Hart Protocol
Material
Connection : SUS 304 / SUS 316
Diaphragm : SUS 316L / Tantalum
Housing : Low copper cast aluminum alloy with polyurethane, light blue paint
Name / Tag Plate : Stainless Steel 304 / Stainless Steel 316
Damping : 0 - 32 seconds
Response Time : 100 mS
Mounting : Direct installation or bracket on 2" Pipe
Humidity Limit : 0 to 100% Relative Humidity
Turn on Time : 2 Seconds with minimum damping
Zero Calibration : Automatic zero calibration by push-button
Cable Entry : M20 Conduit Threads / 1/2"NPT (Female)
Ambient Temperature : -25 to +85 °C
Process Connection : 1/2" NPT, 1/2" BSP
Dimensions : 102 mm ( W ) * 160 mm ( H ) * 130 mm ( D )
Temperature Effect : +/-0.18% ~ +/-0.5% of span per20 °C
Weight : 1.3 Kg
Over Pressure Limit : 120% of Full Scale
Protection Class : IP67 (Standard); Intrinsically Safe EEx ia IIC T5 (Standard); Explosion proof Ex D IIBT5
Vibration Effect : +/-0.05% of URL per g to 200 Hz in any axis
EMI/RFI Effect : Follow SAMA PMC 33.1 from 20 to1000 MHz and for field strengths up to 30 V/m
