CP-01 AUDIO INTERFACE
GENERATOR
D/A Converter: 24-bit sigma-delta
Frequency range: 1 Hz – 45 kHz
Frequency accuracy: better than 0.01%
Frequency resolution: 0.01 Hz
Output impedance: 150 Ω
Max output level (Sine): 13 dBu (3.46 Vrms)
Attenuation: 0.1 dB steps to full mute
THD+Noise (Sine): 0.008%
AC ANALYZER
A/D Converter: 24-bit sigma-delta
Input range (full scale): +40 dBV down to -40 dBV
Max input acceptance: +40 dBV (283 Vpp)
Input impedance: 64 kΩ (5.6 kΩ)
Phantom power supply: 8.2 V
DC ANALYZER
A/D Converter: 12-bit
Input range: ± 6.5 V
MISCELLANEOUS
Sampling frequencies: 96 kHz and 48 kHz
Connections: analog RCA in and out
Digital connection: USB 2.0 port
Power supply: USB powered (480 mA)
Dimensions (cm): 9 (w) × 12 (d) × 2.5 (h)
Weight: 0.3 kg
MIC-02 MICROPHONE
Type: Condenser electret
Accuracy: ±1 dB, 20 Hz to 10 kHz
Accuracy: ±2 dB, 10 kHz to 20 kHz (direct field)
Maximum level: 130 dB SPL
Dimensions: 8 mm diameter, 12 cm long

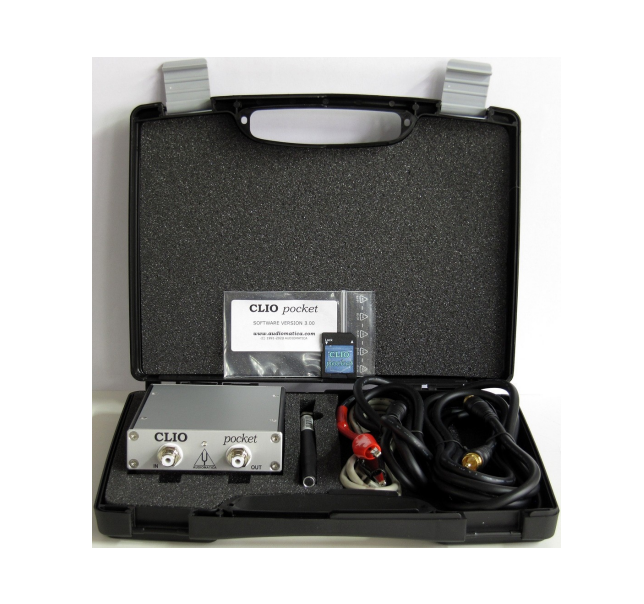

Inside the box you find:
– The CP-01 Audio Interface
– The CLIO Pocket SD with software and drivers
– The Microphone MIC-02
– One USB 2.0 cable
– One RCA to RCA 2.7m long microphone cable
– One RCA to alligators impedance cable
