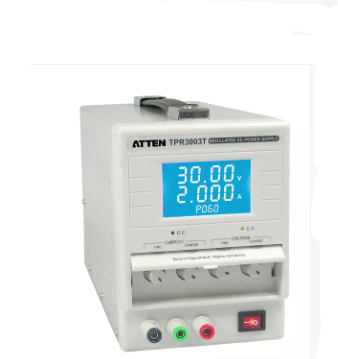

ATTEN TPR3003T Linear Adjustable DC Regulated Voltage Power Supply (30V, 3A, 90W)
Rated output voltage: 0-30V
Rated output current: 0-3A
Power supply voltage: 220V±10% 50HZ/60HZ (100V/117V/200V//217V/234V optional)
Operation condition: temperature 0 ~40 relative humidity <80%
Storage condition: temperature-20 ~80 relative humidity <80%
Rated output power: 90W
Power supply effffect: CV 0.01%+3mV CC 0.2%+1mA
Load effffect: CV 0.01%+5mV CC 0.2%+5mA
Ripple and noise: (5Hz~1MHz)CV 0.5mVr.m.s CC 3mAr.m.s
Display: 4 digits
Voltmeter display precision: ±0.5%rdg+2 bit
Ammeter display precision: ±0.5%rdg+2 bit
High voltage test: leak current 1mA(test condition AC-GND 1700VAC/2s)
Insulation impedance: insulation impedance 7MΩ((test condition AC-GND 500VDC/5s)
Working method: constant voltage/constant current
Protection method: current-limiting, voltage reduction , short-circuit protection, over temperature protection ,over voltage protection
Heat-dissipating method: air cooling
Size (WxHxD): W125xH170xD275mm
Standard Packing
Inner box: 37.9x23x27.4(CM), N.W.: 5KG, G.W.: 5.3KG
