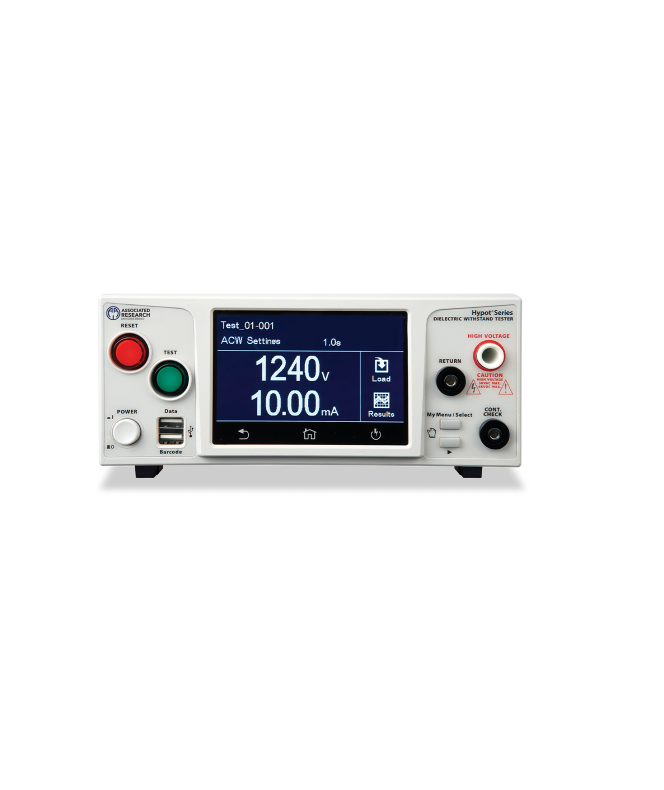

Associated Research (ARI) 3855 ເຄື່ອງທົດສອບຄວາມປອດໄພທາງໄຟຟ້າ (5 kV @ 20 mA AC, IR, 5 years warranty)
INPUT:
Voltage: 100 – 120 VAC / 200 – 240 VAC ± 10% Auto Range
Frequency: 50/60 Hz ± 5%
Fuse: 3.15 A, Fast Blow 250 VAC
DIELECTRIC WITHSTAND TEST MODE
Output Rating: 5 kVA @ 20 mAAC
Maximum Limit :
AC: Range: 0.00 – 20.00 mA, Resolution: 0.01 mA
DC : Range: 0 – 7500 µA, Resolution: 1 µA, Accuracy: AC and DC ± (2% of setting + 2 counts)
Minimum Limit:
AC: Range: 0.000 – 9.999 mA, Resolution: 0.001 mA
DC : Range: 0.0 – 999.9 µA, Resolution: 1 µA, Accuracy: AC and DC ± (2% of setting
+ 2 counts)
Arc Detection Range: 1 – 9 (9 is most sensitive)
Ground Fault Interrupt:
GFI Trip Current: 450 µA max (AC or DC), Fixed
HV Shut Down Speed: < 1 msec
INSULATION RESISTANCE TEST MODE
Voltage Setting:
Range: 30 – 1,000 VDC
Resolution: 1 V
Accuracy: ± (2% of setting + 5 V)
Resistance Display: Range: 1 – 50,000 MΩ
Charge-LO Range: 0.000 – 3.500 µA DC or Auto Set
Ramp Timer Range: Ramp-Up: 0.1 – 999.9 sec
Ramp-Down: 0, 1.0 – 999.9 sec, (0=OFF)
Delay Timer Range: 0.5 – 999.9 sec (0=OFF)
Dwell Timer Range: 0, 0.5 – 999.9 sec (0=continuous)
GENERAL SPECIFICATIONS
Remote Control and Signal I/O
Inputs: Test, Reset, Hardware Interlock, File Recall
Outputs: Pass, Fail, Test-in-Process, Reset-Out, Start-Out
Vmax: Displays the maximum voltage value recorded during a breakdown
Imax: Displays the maximum leakage current value read during a test
Memories:
50 steps
1500 test results
Interface: USB standard
Language: English, Traditional Chinese, Simplified Chinese, Turkish, Portuguese, Spanish, German, French
Security: Multiple user setups with ID and password
Dimensions (W x H x D): 8.5" x 3.5" x 11.9"
Weight: 12 lbs (5.46 kgs)
