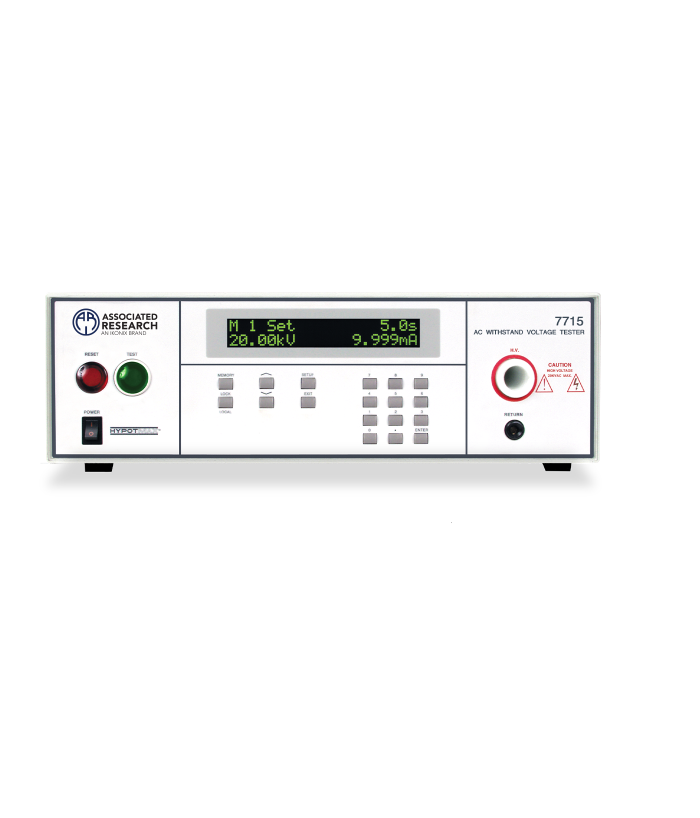

Associated Research (ARI) 7715 + ISO Calibration + 40396 + 38305 without USB, RS232 ເຄື່ອງທົດສອບ AC Hipot (20 kV @ 10 mA AC, CE listed, bảo hành 5 năm + option (Premium ISO Calibration + 40396 Insulation mat 3x3 class3 + 38305 Option GPIB, without USB, RS232))
INPUT SPECIFICATIONS
Voltage: 115/230 VAC ± 10%, Single Phase, User Selection
Frequency: 50/60 Hz ± 5%
Fuse: 6.3 A, 250 V Slow Blow
DIELECTRIC WITHSTAND TEST MODE
Output Rating: 20 kV @ 10 mAAC
HI-Limit and LO-Limit:
Range: 0.00 – 9.999 mA
Resolution: 0.001 mA
Accuracy: ± (2% of setting + 2 counts
Arc Detection:
1 – 9 at output voltage < 15.00 kV
1 – 7 at output voltage ≥ 15.00 kV
Voltage Display:
Range: 0.00 – 20.00 kV Full scale
Accuracy: ± (2% of reading + 20 V)
Current Display
Auto Range
Range 1: 0.000 – 3.500 mA
Range 2: 3.00 – 10.00 mA
AC Output Waveform: Sine Wave, Crest Factor = 1.3 – 1.5
Ramp Timer: Range: 0.3 – 999.9 sec
Ground Continuity: Max. Ground Resistance 1 Ω ± 0.1 Ω, fixed
GENERAL SPECIFICATIONS
Memory: 50 memories w/ 8 steps per memory
Mechanical: Tilt-up front feet
Optional: GPIB
Dimensions (W x H x D): 16.93" x 5.24" x 15.75" (430 x 133 x 400 mm)
Weight: 59.4 lb (26.9kg)
