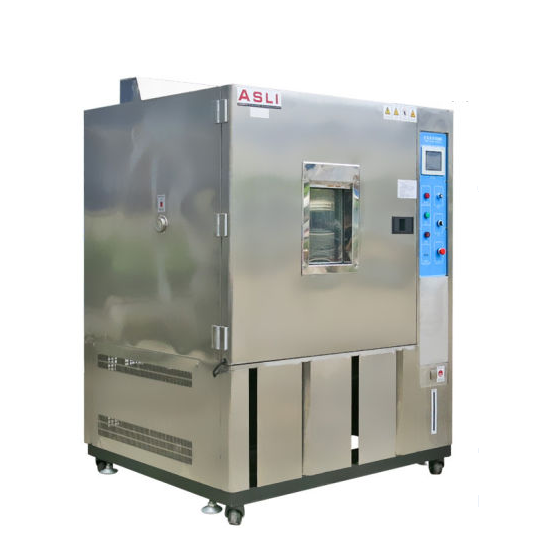

ASLI TH-150-D Environmental chamber

Internal Dimension

W500xH600xD500(mm)

Internal Dimension

W1050xH1750xD1050(mm)

Temperature Range

Low Temperature: D:-40℃(Temperature according to customer’s requirement)
High temperature: 150℃

Humidity Range

20%~98% R.H.

Analytic Accuracy/
Distribution uniformity of

temperature and humidity

0.1℃; 0.1% R.H/±2.0℃; ±3.0% R.H.

Control Accuracy of
Temperature and Humidity

±0.5℃; ±2.5% R.H.

Temperature Rising/

Falling Speed Rate

Temperature rising approx. 0.1~3.0℃/min / temperature falling approx. 0.1~1.5℃/min;
( The Falling Speed Rate Min.1.5℃per minute is a special optional condition)

Material

Material of the inner box is SUS 304# stainless steel, of the outer box is stainless steel or SEE cold-rolled steel with paint coated, Insulation material is resistant to high temperature, high density, formate chlorine,

ethyl acetum foam insulation materials

Cooling System

Wind cooling or water cooling/single segment compressor(-40℃, double segment compressor -70℃)

Protection Devices

Fuse-free switch, overloading protection switch for compressor,

high and low voltage coolant protection switch, over-humidity and

over-temperature protection switch, fuses, fault warning system, water short storage warning protection

Compressor

French Tecumseh Brand,Germany Bizer Brand

Power

AC220V 1ph 3 lines, 50/60HZ , AC380V 3ph 5 lines , 50/60HZ

Approx. Weight (Kg)

300

Optional Accessories

Inner door with operation hole , Recorder, Water Purifier, Dehumidifier
