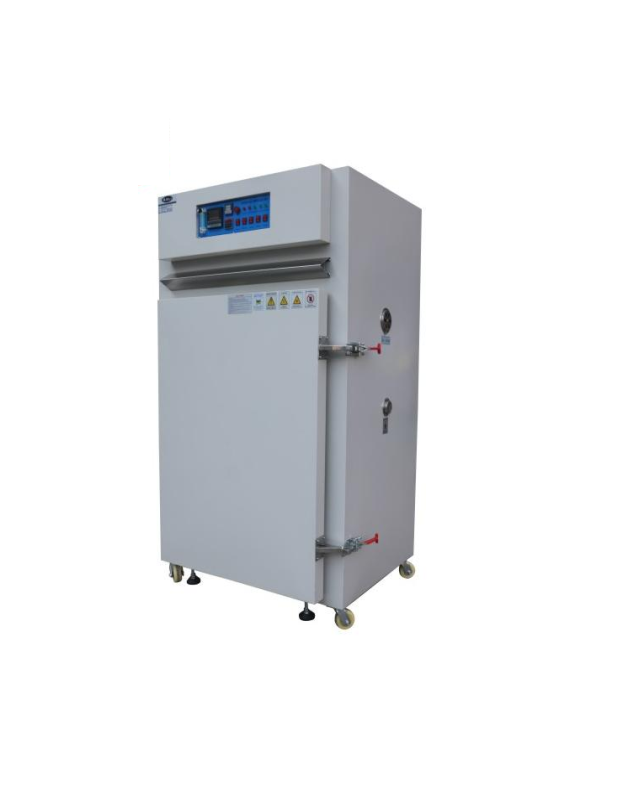

ASLI RND-45 ເຕົາອົບອຸນຫະພູມສູງໄນໂຕຣເຈນ (RT +15 ~ 200°C)
Internal dimension: W400×H450×D400mm
External dimension: W680×H1060×D950mm approx.
Controller is located at the bottom or up side of the machine, single door
Interior material is stainless steel,Exterior material is SECC steel sheet, paint coated
Insulation Material of imported fire-proof rock wool
Sealing material :Silicon
Controller system
PID Temperature control , Micro-computer calculate automaticlly, PV/SV display at same time,press key setting.
Temperature sensor:CA(K)TYPE
Temperature output 220V solid state relay
SSR Current controller
Heating material: honeycomb fashion heater
Temperature range :RT+15 ~ 200 (Settable)
Machine accuracy:
Control accuracy : ±1
Analysis temperature : ±0.1
Temperature uniformity : ±2.0℃ (When Tempearture 100℃ )
Temperature rising speed rate: RT+15 ~ 100 , approx 35 min
Air circulation system:
Force air circltaion system
The motor is the special type of long axis heat resistance.
Built in adjustable guide wind plate
Nitrogen divice:
Pressure control valve: control of nitrogen pressure, the normal use of nitrogen pressure to 2 kg
Flow meter: control the capacity of the nitrogen into the box, the range is 2L/min ~ 10Lmin
Nitrogen pipe into the back of the box, with a 1.5 m long 10mm nitrogen hose
Users please prepare for Nitrogen gas
Power : AC220V, 1Phase 3 Lines
