Camera: 2.0M Pixel Digital Camera
Weight: 390kg

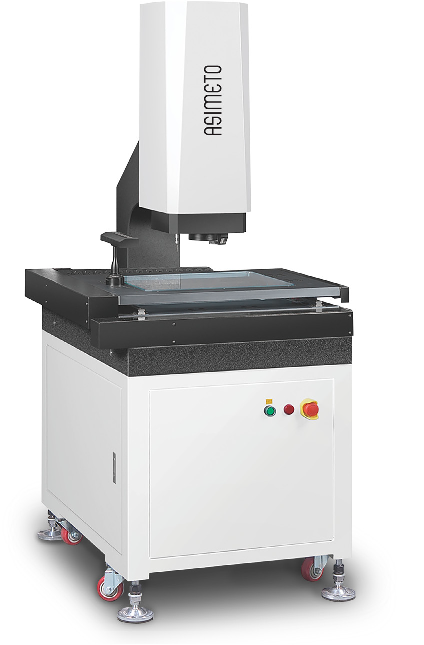

Model No.: CVS4030
Zoom Lens**: Auto zoom lens: 1-10x
Field of View: 8.1 ~ 1.3mm (Depends on Camera and Lens)
Repeatability: ±2µm
Z-Axis Travel: 200mm
Base and Pillar: High Accuracy Marble
X/Y-Axis Travel: 400 x 300mm
Dimension (WxDxH): 1750 x 920 x 1700mm
X/Y-Axis Accuracy*: ≤2.5 + L/200 (µm)
Working Environment: Temperature: 20°C±2°C Change range < 2°C/hr | Humidity: 30% ~ 80% | Vibration <0.002g, <15Hz
X/Y/Z-Axis Scale Resolution: High Precision Linear Scale, .0001mm
Illumination System (Software Adjustment): Surface: 5-ring 8-division 0 ~ 255 grade continue adjustable | Contour: LED Parallel Illumination | LED Laser Navigation Lights
High precision marble base and mechanical structure provide great stability and rigidity.
Can set auto measurement, and process batch measurement with high efficiency.
Auto zoom lens 1X - 10X.
2.0M pixel digital camera.
Programmable 5-ring 8-division LED surface illumination.
Contour parallel LED illumination.
0.1μm linear scale.
Joystick control.
RationalVue software.
