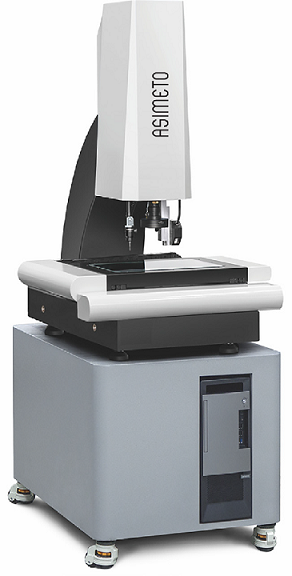

Camera: 1.3M Pixel Digital Camera
Weight: 330kg
Model No.: CVS3020E
Zoom Lens**: 6.5X High Resolution Detented Zoom Lens Magnification: 0.7X - 4.5X Video Magnification: 20X - 200X
Field of View: 8.1 ~ 1.3mm (Depends on Camera and Lens)
Repeatability: ±2µm
Z-Axis Travel: 200mm
Base and Pillar: High Accuracy Marble
X/Y-Axis Travel: 300 x 200mm
Dimension (WxDxH): 810 x 610 x 1050mm
X/Y-Axis Accuracy*: ≤3.0 + L/200 (µm)
Working Environment: Temperature: 20°C±2°C Change range < 2°C/hr | Humidity: 30% ~ 80% | Vibration <0.002g, <15Hz
X/Y/Z-Axis Scale Resolution: .0005mm
Illumination System (Software): Surface: 5-ring 8-division 0 ~ 255 grade continue adjustable | Contour: LED Parallel Illumination | LED Laser Navigation Lights
High precision marble base and mechanical structure provide great stability and rigidity.
Can set auto measurement, and process batch measurement with high efficiency.
6.5X Detented zoom lens, magnification 0.7X - 4.5X.
1.3M pixel digital camera.
Programmable 5-ring 8-division LED surface illumination.
Contour parallel LED illumination.
0.5μm linear scale.
Joystick control.
RationalVue software.
