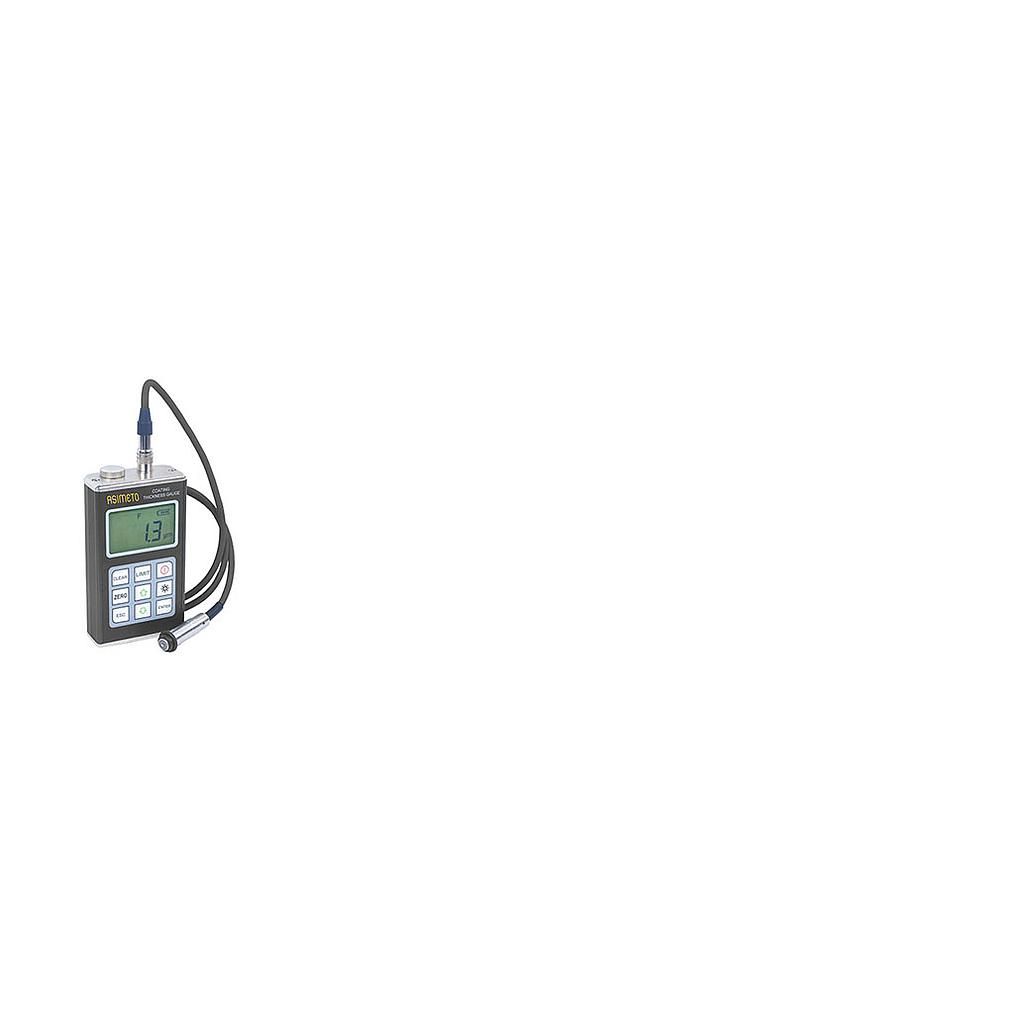

Asimeto 506-10-1 Digital Coating Thickness Gauge (0-1250 μm, 0.1 μm)

Notes: Substrate material: magnetic metal (Steel, Iron, etc.) Coating material: non-magnetic coating (Aluminum, Chromium, Copper, Enamel, Rubber, Paint, etc.)

Range: 0-1250 μm

Probes: F1

Resolution: 0.1 μm

Fast, non-destructive, precise measurement of various coating thicknesses and material thicknesses. Widely used in manufacturing where a coating has been applied to a base material or applications where the wall thickness requires measurement.

The system incorporates magnetic and eddy current technologies for multipurpose measurements. By selecting the appropriate probe the thickness of the non-ferrous coatings on ferrous base metals or non-ferrous coatings on non-ferrous metal substrates.

Data storage capacity of 20 groups of 50 actual measured values.

Metric / Inch conversion

Working voltage: 3V (2, 5 alkaline batteries).

Two individual probe calibration methods are supported. calibration compensation of system error increases the measurement accuracy.

Measuring status indicator displays the measuring status and type of measurement.

Measured values and user information are shown on a large, easy-to-read LCD. a back lit display ensures easy reading of the data in poorly-lit environments.

Battery level indicator provides the remaining battery voltage.

Auto sleep and auto power off functions increases battery life.

Compact aluminum case provides storage protection.
