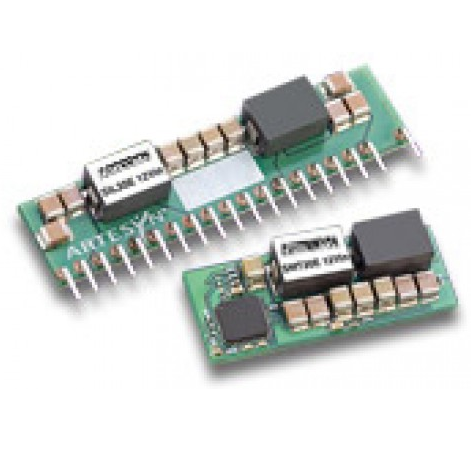

Artesyn SMT30E-12W3V3-J 99 ວັດ DC-DC Converter ບໍ່ແຍກ (3.63V; 30A; 99W)

Input voltage range: 8 - 14 Vdc

Output Power (Max.): 99 W

Output Voltage: 0.8 - 3.63 V

Output Current (Min.): 0 A

Output Current (Max.): 30 A

Setpoint accuracy: ±1.3% typical

Line regulation: ±0.2% typical

Load regulation: ±1.5% typical

Ripple and noise (5 Hz - 20 MHz): 60 mV pk-p; 25 mV rms

Efficiency: 91%

Operating ambient temperature: -40 °C to +85 °C

Non-operating temperature: -40 °C to +125 °C

Dimensions (L x W x H): 33.02 x 13.46 x 8.10 mm

Weight 6.3 g (0.22 oz)

Datasheet
