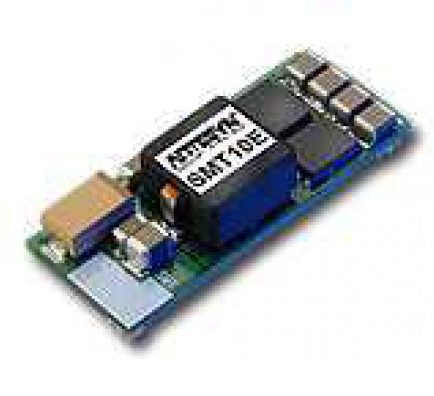

Artesyn SMT10E-12W3V3-J 36 ວັດ DC-DC Converter ບໍ່ແຍກ (3.63V; 10A; 33W)

Input voltage range: 10 - 14 Vdc

Output Power (Max.): 33 W

Output Voltage: 0.8 - 3.63 Vdc

Output Current (Min.): 0 A

Output Current (Max.): 10 A

Efficiency (Typical): 94%

Ripple and noise (5 Hz to 20 MHz): 60 mV pk=pk tối đa 25 mV rms

Regulation Line: ±0.2%

Regulation Load: ±1.0%

Output setpoint accuracy: ±0.4%

Operating ambient temperature: -40 °C to +85 °C

Non-operating temperature: -40 °C to +125 °C

Weight: 6.3 g (0.22 oz)

Dimensions (L x W x H): 33.02 x 13.46 x 8.21 mm

Datasheet
