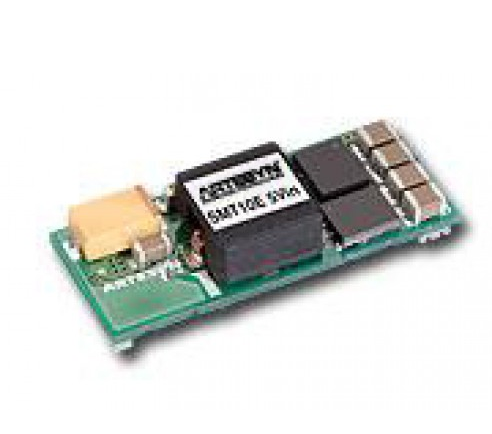

Artesyn SMT10E-05W3V3-J 49.9 ວັດ DC-DC Converter ບໍ່ແຍກ (3.63V; 10A; 36.3W)

Input voltage range: 3.0 - 5.5 Vdc

Output Power (Max.): 36.3 W

Output Voltage: 0.8 - 3.63 Vdc

Output Current (Min.): 0 A

Output Current (Max.): 10 A

Efficiency (Typical): 96%

Ripple and noise (0 - 20 MHz BW): 50 mV pk=pk tối đa 25 mV rms

Regulation Line: ±0.2%

Regulation Load: ±1.0%

Output setpoint accuracy: ±0.4%

Operating ambient temperature: -40 °C to +100 °C

Non-operating temperature: -40 °C to +125 °C

Weight: 6.3 g (0.22 oz)

Dimensions (L x W x H): 33.02 x 13.46 x 8.21 mm

Datasheet
