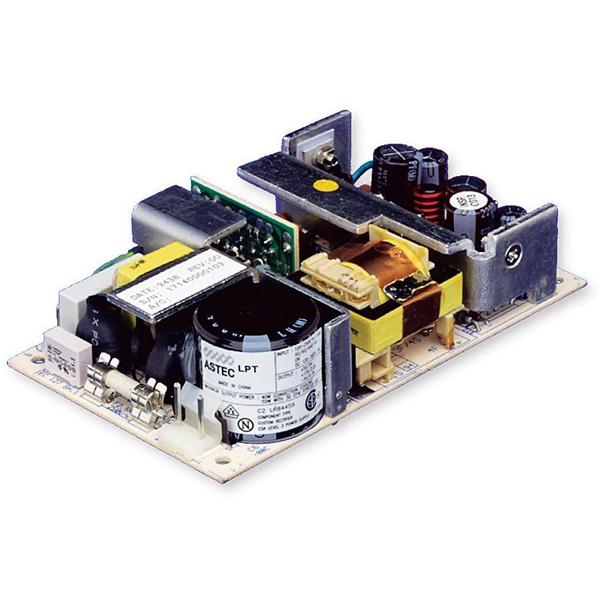

Width: 76.2 mm (3 in)
Height: 28.956 mm (1.14 in)
Length: 127 mm (5 in)
Industry: Industrial
Efficiency: 70 %
Unit Weight: 226.796 g
Output Power: 40 W
Input Voltage: 85 VAC to 264 VAC, 120 VDC to 300 VDC
Cooling Method: Convection, Air-Cooled
Mounting Style: Chassis
Input Frequency: 47 Hz to 440 Hz
Mechanical Style: Open / Enclosed Frame
Number of Outputs: 3 Output
Power - Convection: 40 W
Power - Forced Air: 55 W
Input Voltage - Max: 264 VAC, 300 VDC
Input Voltage - Min: 85 VAC, 120 VDC
Open Frame/Enclosed: Open Frame
Output Current-Channel 1: 4 A
Output Current-Channel 2: 1 A
Output Current-Channel 3: 500 mA
Output Voltage-Channel 1: 5 VDC
Output Voltage-Channel 2: 24 VDC
Output Voltage-Channel 3: - 12 VDC
Operating Temperature Range: 0 C to + 50 C
Maximum Operating Temperature: + 50 C
Minimum Operating Temperature: 0 C
