Terasic Arria V SoC Development Kit and SoC Embedded Design Suite

Name: Terasic Arria V SoC Development Kit and SoC Embedded Design Suite
Brand: Terasic

ຜູ້ຜະລິດTerasic

ModelArria V SoC

ຕິດຕໍ່

ຈຳນວນ

ການຊຳລະເງິນທີ່ປອດໄພ

ການຮັບປະກັນຄຸນນະພາບ

ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ

ມີບໍລິການຈັດສົ່ງ

Featured devices
    Arria V ST SoC—5ASTFD5K3F40I3NES (SoC)
    MAX® V CPLD—5M2210ZF256C4N (system controller)
    MAX II CPLD—EPM570GF100 (embedded USB-BlasterTM II cable)
FPGA configuration sources
    Embedded USB-Blaster II (JTAG) cable
    EPCQ flash (Active Serial x1 or x4 configuration)
    Flash fast passive parallel (FPP)
    Hard processor system (HPS)
FPGA memory
    2x 1,024 MB 32-bit DDR3 SDRAM
    1x 512 Megabit (Mb) CFI synchronous Flash
    1x 256 Mb NOR Flash (EPCQ)
FPGA I/O interfaces
    1x PCI Express x4 Gen2 socket
    2x FPGA mezzanine card (FMC) portds
    2x 10/100 Ethernet ports
    2x SPF+ ports
    4x user LEDs
    4x user pushbuttons
    4x user dip switches
    HPS boot sources
    512 Mb QSPI Flash
    Removable micro-SDCard flash
    FPGA
HPS memory
    1x 1,024 Mbyte (MB) DDR3 SDRAM with ECC
    1x 512 Mb QSPI flash
    Micro-SDCard socket with 4 GB micro-SDCard flash device
    One 32 Kb I2C serial EEROM
HPS I/O interfaces
    1x 1 Gigabit Etherent port (HPS)
    1x USB 2.0 on-the-go (OTG) port (HPS)
    2x RS-232 UART (through mini-USB port)
    x1 real-time clock (with battery backup)
    x1 two-line text LCD
    x4 user LEDs
    x4 user push buttons
    x4 DIP switches
Clocking
    Four-output programmable clock generator for FPGA reference clock inputs
    148.5 MHz LVDS programmable voltage-controlled crystal oscillator (VCXO) for FPGA reference clock input
    50 MHz single-ended oscillator for FPGA and MAX V FPGA clock input
    100 MHz single-ended oscillator for MAX V FPGA configuration clock input
    SMA inputs for FPGA and HPS clocks
    LMK04828 clock jitter cleaner
Power
    Laptop DC input 14—20 V adapter
System monitoring circuit
    Power (voltage, current, wattage)
Mechanical
    Board dimensions—7.175” x 9”
SoC Embedded Design Suite Subscription Edition
    ARM Development Studio 5 (DS-5™) Altera Edition Toolkit
    Hardware-to-software handoff tools
    Linux run-time software for application development
    SoC hardware libraries for firmware development
    Application examples

Catalog

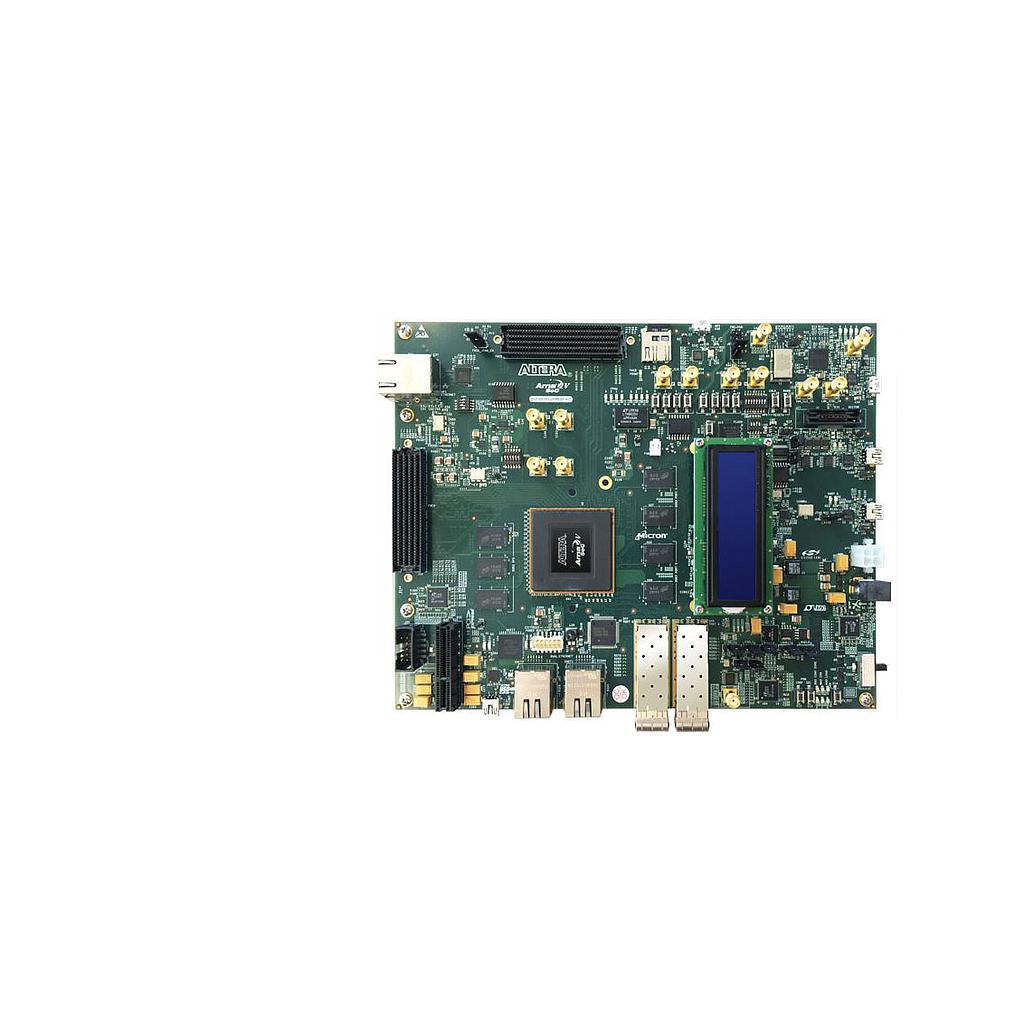

The Altera® Arria® V SoC Development Kit offers a quick and simple approach to develop custom ARM® processor-based SoC designs. Altera’s midrange, transceiver-based Arria V FPGA fabric provides the highest bandwidth with the lowest total power for midrange applications such as:
