Aqualabo S200 ເຄື່ອງວິເຄາະ chlorine Dioxyde (0~5 mg/L, -2~16pH)
Technical characteristics sensor
Measured parameter
Measuring principle Chlorine Dioxide
Measuring principle pH: Potentiostatic with one gold ring
Reference used on the pH probe
Combined electrode reference/measure
Measuring range: Chlorine dioxide: 0.00 to 5.00 mg/L
pH: -2.00 to +16.00
Temperature: -30.00 to +140.00 °C
Resolution: Chlorine dioxide: 0.01 mg/L
pH: 0.01 mV Resistor > 5x1011 Ω
Temperature: 0.1 °C/Pt100/Pt1000
Accuracy: +/- 2 % Full Scale
Response time: 30s
Chlorine dioxyde sensor
Material in contact with the middle: Glass/gold
Water temperature max.: 70 °C
Pressure max: 8 bars at 20 °C
Flow: Between 40 and 120 l/h
Fluctuations Compensated and checked
Temperature: Pt1000
pH sensor
Water temperature max.: 70 °C
Pressure max: 8 bars at 20 °C
Flow: Between 40 and 120 l/h
Fluctuations Compensated and checked

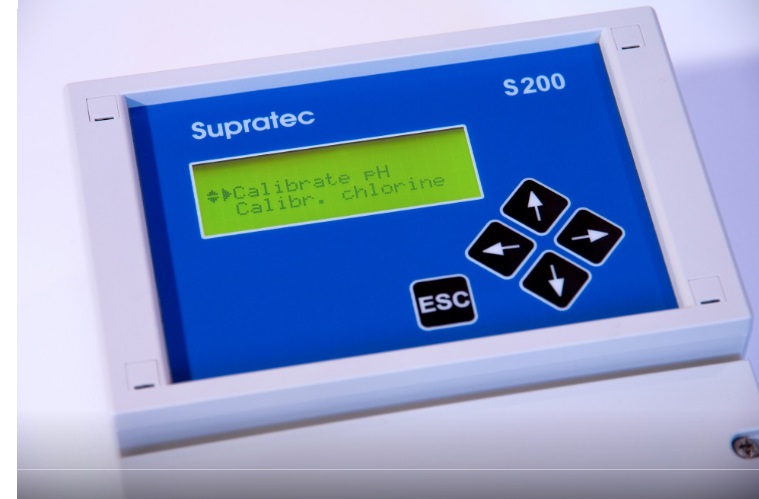

Constructional design wall-mounted casing S200
Mains power: 230 V/AC, +/- 10 % (50/60 Hz)
Consumption 16 VA
Display: LCD display, 4x20 characters, alphanumeric, backlight
Easy operation by means of 5 keys
Dimensions (WxHxD): 160 x 165 x 85 mm
Weight: 1,1 Kg
Protection class: IP 65
Operating temperature: -20 to + 55 °C
Max 90 % relative humidity at 40 °C non-condensing
Storage temperature: -20 to +65 °C
