TECHNICAL SPECIFICATIONS
CTZN Specifications :
Measure principle: Inductive conductivity sensor regulated in temperature
Measure ranges conductivity: 0,0 –100,0 mS/cm
Resolution: 0,1
Measure ranges salinity: 5-60 g/Kg
Measure range Temperature: 0 to 50 °C
Resolution Temperature: 0.01°C
Accuracy Temperature: ± 0,5 °C
Temperature compensation: With NTC or external measure
Accuracy T°C: ± 0.5 °C range 0-40 °C
Response time: 90% of the value in less than 30 seconds
Stocking temperature: -10°C à + 60°C
Signal interface: Modbus RS-485 en standard et SDI-12
Maximum refreshing time: Maximum < 1 seconde
Sensor power-supply: 5 to 28 volts, max 30 V
Electric consumption:
Automatic Standby < 50 μA, Heating time 100 mS
Average Modbus RS485/ Range 0-100 mS/cm
1 measure/s
Vin 5V: 31 mA
Vin 12 V: 15,5 mA
Vin 24 V: 11,5 mA
Max curent pulse 700 mA during 2 mS, 350 mA during 150 mS

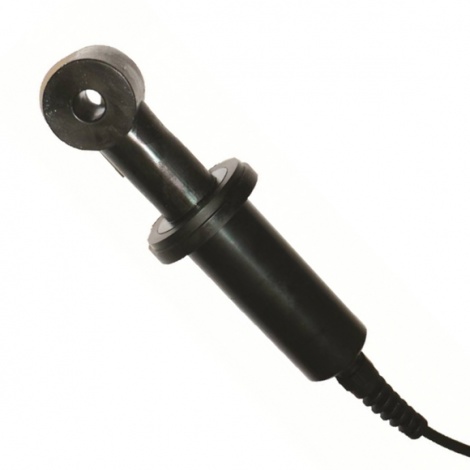

Sensor
Dimensions: Diameter max. 62,4 mm, Lenght : 196 mm
Weight: 700 g
Material: EPDM, PVC, Stainless steel
Maximum pressure: 5 bars
Connexion: 9 armoured connectors, polyurethane jacket, bare-wires or waterproof Fisher connector
Protection: IP68
For specific range please check the attachment below!
