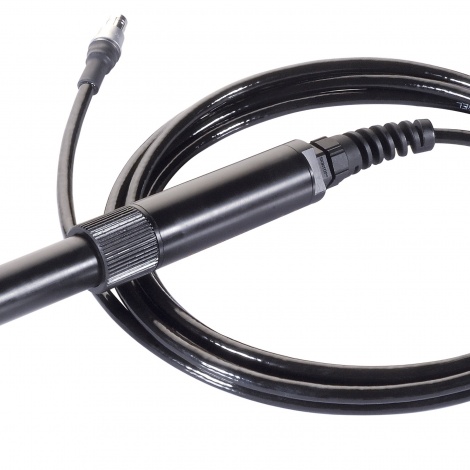

Aqualabo PHEHT ເຊັນເຊີດິຈິຕອລ pH 7m PHEHT ສໍາລັບ ODEON ໂດຍບໍ່ມີແຜ່ນກາດ (14 pH, - 1000~+1000 mV, 0~50°C)
TECHNICAL SPECIFICATIONS
pH
Measure principle: Combined electrode (pH/ref) : special glass, Ag/AgCI ref. Gelled electrolyte (KCI)
Range: 0 – 14 pH
Resolution: 0,01 pH
Accuracy; +/- 0,1 pH
Redox
Measure principle: Combined electrode (Redox/reference) : Platinum tip, Ag/AgCI
AgAgCl. Gelled reference (KCI)
Range: - 1000 to + 1000 mV
Resolution: 0,1 mV
Accuracy: ± 2 mV
Temperature
Technology: NTC
Range: 0,00 °C à + 50,00°C
Resolution: 0,01 °C
Accuracy: ± 0,5 °C
Response time: < 5 s
Storage temperature: 0°C to + 60°C
Protection: IP 68
Interface: Modbus RS-485 / SDI-12 (option)
Power supply: 5 to 12 V
Power consumption: Standby : 25μA
Average RS485 (1 measure/seconde) : 3,9 mA
Average SDI12 (1 measure/seconde) : 6,8 mA
Current pulse : 500 mA
Sensor
Dimensions: Diameter : 27/21 mm ; Lenght : 207 mm
Weight: 350 g (sensor + 3 m cable)
Material: PVC, DELRIN, special pH glass, platinum, polyamide
Pressure: 5 bars
Cable: Coaxial armoured, Polyurethane, bare wire or Fisher connector
Protection: IP68
For specific range please check the attachment below!
