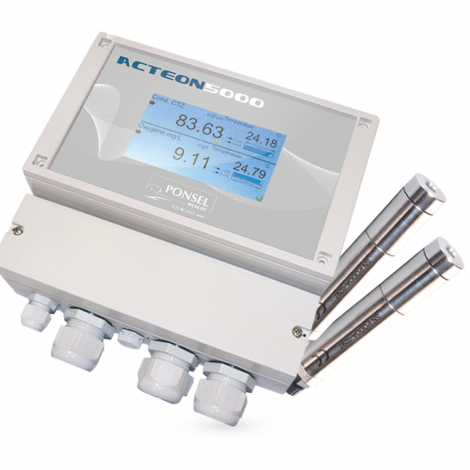

Aqualabo NC-FIX-C-00121 Transmitter 2 ເຊັນເຊີອົກຊີເຈນ Titanium 7 m ACTEON 5000 (0,00-20,00 mg/L, 0 – 200 %)

Transmitter ACTEON 5000

Software and features

Digital sensor: 2 inputs digital sensor RS485

2 analog input: In mode 0/4-20 mA or 0-10 V

2 relay input: Function of transfer on exit(release) TOR

Information of external cleaning system: swing in maintenance mode

2 analog outputs: Choice of 2 parameters programmable according to the connected sensor

Programming PID

2 digital outputs /relay: NO/NF customizable

Instruction point: setting of the measuring range

(Hysteresys / activation way) and time of activation,

Command for external cleaning system

Output alarm for defect material sensor

Digital output: Modbus RTU

Ethernet TCP IP

Data recording: Internal flash memory

Frequency recording: 1-120 mn

Recording journal of events, measure sensors.

Atmospheric pressure sensor: To compensate oxygen pression

Characteristics

Display: Backlit graphic LCD touch Screen – Size95x54 mm

Analog outputs: 0/4.00 – 20.00 mA with galvanic isolation

Charge max 250 W

Relay outputs: 6 A /250 V

Operating conditions: Temperature : -15°C to + 50 °C

Temperature of storage/transport : -15°C to + 50°C

USB port: Unloading of the recorded data

Power/ Electrical protections: 100-240 V AC/DC 50-60 Hz

- Option 9-28 V DC/DC

- Electrical protection: consistent EN61010-1 :2010

Housing

Dimensions (LxHxP): 213 x 185 x 84 mm

Material: Grey ABS

Protection rating: IP 65

Front: Antireflective polyester

Containing:

- 1 ACTEON 5000 transmitter digital bi-sensors,

- 2 digital OPTOD sensor in TITANIUM with 7 m cable,

- 1 Operating instructions on CD.

For specific range please check the attachment below!
