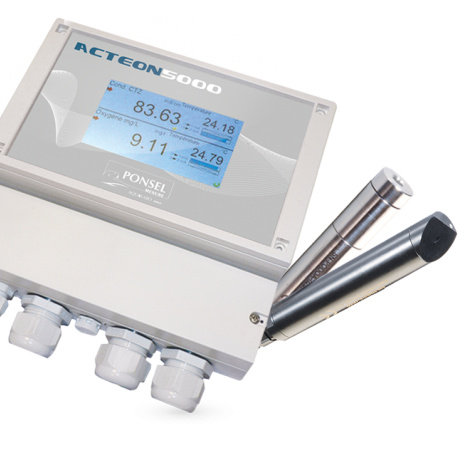

Aqualabo NC-FIX-C-00112 Transmitter Oxygen and Turbidity 7m ACTEON 5000 (0-20mg/L, 0~200%, 0~4000 NTU, 0~4500 mg/L)
Transmitter ACTEON 5000
Software and features
Digital sensor: 2 inputs digital sensor RS485
2 analog input: In mode 0/4-20 mA or 0-10 V
2 relay input: Function of transfer on exit(release) TOR
Information of external cleaning system: swing in maintenance mode
2 analog outputs: Choice of 2 parameters programmable according to the connected sensor
Programming PID
2 digital outputs /relay: NO/NF customizable
Instruction point: setting of the measuring range
(Hysteresys / activation way) and time of activation,
Command for external cleaning system
Output alarm for defect material sensor
Digital output: Modbus RTU
Ethernet TCP IP
Data recording: Internal flash memory
Frequency recording: 1-120 mn
Recording journal of events, measure sensors.
Atmospheric pressure sensor: To compensate oxygen pression
Characteristics
Display: Backlit graphic LCD touch Screen – Size95x54 mm
Analog outputs: 0/4.00 – 20.00 mA with galvanic isolation
Charge max 250 W
Relay outputs: 6 A /250 V
Operating conditions: Temperature : -15°C to + 50 °C
Temperature of storage/transport : -15°C to + 50°C
USB port: Unloading of the recorded data
Power/ Electrical protections: 100-240 V AC/DC 50-60 Hz
- Option 9-28 V DC/DC
- Electrical protection: consistent EN61010-1 :2010
Housing
Dimensions (LxHxP): 213 x 185 x 84 mm
Material: Grey ABS
Protection rating: IP 65
Front: Antireflective polyester
Containing:
- 1 ACTEON 5000 transmitter digital bi-sensors,
- 1 digital NTU sensor with 7 m cable,
- 1 digital OPTOD sensor with 7 m cable,
- 1 Operating instructions on CD.
For specific range please check the attachment below!
Datasheet
Datasheet Conductivity digital sensor C4E_2
Datasheet Conductivity digital sensor C4E
Datasheet Oxygen Optical digital sensor OPTOD_2
Datasheet Oxygen Optical digital sensor OPTOD
Datasheet Turbidity digital sensor NTU
Datasheet Turbidity digital sensor NTU
Manual
User Manual Conductivity digital sensor C4E
User Manual Oxygen Optical digital sensor OPTOD
User Manual Transmitter digital physicochemistry ACTEON 5000
User Manual Transmitter digital physicochemistry ACTEON 5000_Calibration procedure STACSENSE
User Manual Turbidity digital sensor NTU_Wiring guidelines
User Manual Turbidity digital sensor NTU
